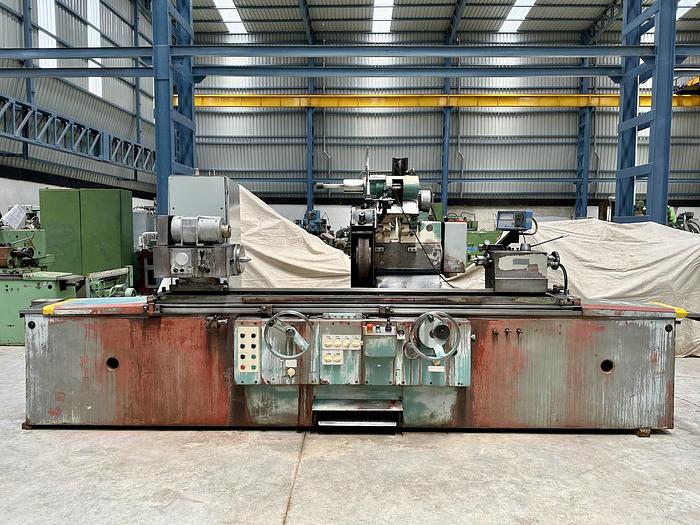

TOS BHU40A 1500 mm Length Universal Cylindrical Grinder
TOS BHU40A 1500 mm Length Universal Cylindrical Grinder
Contact us for price
Location:New Delhi, India
Description
TOS (Czech Republic) make Heavy-Duty Universal Cylindrical Grinding Machine in excellent working condition. The model of this machine is BHU-40A and the Max. Length of Job is 1500 mm. It is a complete Auto-Cycle type latest series of conventional machines made by TOS Hostivar Company. The least count of the machine is 1 Micron (0.001 mm). The technical details are as follows -
Make - TOS - Hostivar (Czech Republic)
Model - BHU 40A / 1500
Center Height - 205 mm
Max. Diameter of Job - 400 mm
Max. Length of Job - 1500 mm
Grinding Wheel Size - Diameter 500 mm x 100 mm Width
Least Count - 1 Micron (0.001 mm)
Work-Head Speed - 18 rpm to 560 rpm (Continuously Variable)
Internal Grinding Spindle Diameter - 100 mm
- Equipped with Internal Grinding Attachment.
- Equipped with Marposs E9 type In-Process Measuring System.
- Features like Auto-Cycle, Delay, Auto-Slow, Plunge Grinding, Rapid Travel of Table etc.
- Features like Auto-Cut, Auto-Compensation, Super Finishing (Spark-Out) etc.
- Joy-stick model ; One of the latest series of conventional machines made by TOS.
- With many Job Steadies, Wheel Dresser, Job Supports, Wheel Flange etc.
- Complete with coolant filtration unit, tank and pump.
- Operating Manual & Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS - Hostivar |
| Model | BHU 40A / 1500 |
| Condition | Used |
| Make | TOS - Hostivar (Czech Republic) |
| Model | BHU 40A / 1500 |
| Center Height | 205 mm |
| Max. Diameter of Job | 400 mm |
| Max. Length of Job | 1500 mm |
| Grinding Wheel Size | Diameter 500 mm x 100 mm Width |
| Least Count | 1 Micron (0.001 mm) |
| Work-Head Speed | 18 rpm to 560 rpm (Continuously Variable) |
| Internal Grinding Spindle Diameter | 100 mm |
| Other Information 1 | - Equipped with Internal Grinding Attachment. |
| Other Information 2 | - Equipped with Marposs E9 type In-Process Measuring System. |
| Other Information 3 | - Features like Auto-Cycle, Delay, Auto-Slow, Plunge Grinding, Rapid Travel of Table etc. |
| Other Information 4 | - Features like Auto-Cut, Auto-Compensation, Super Finishing (Spark-Out) etc. |
| Other Information 5 | - Joy-stick model ; One of the latest series of conventional machines made by TOS. |
| Other Information 6 | - With many Job Steadies, Wheel Dresser, Job Supports, Wheel Flange etc. |
| Other Information 7 | - Complete with coolant filtration unit, tank and pump. |
| Other Specification 8 | - Operating Manual & Electrical Drawings are available. |
| Other Information 9 | - Machine is in excellent working condition. |
