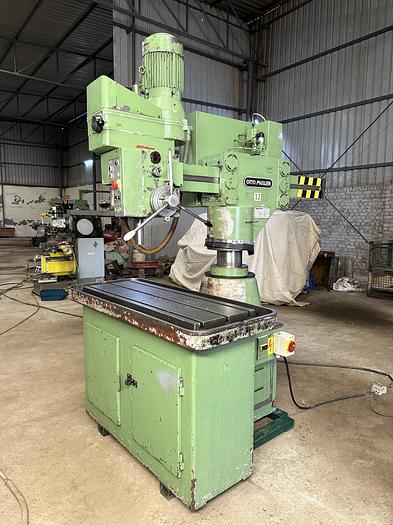

Otto Muller Germany Radial Drilling and Tapping Machine
Otto Muller Germany Radial Drilling and Tapping Machine
Contact us for price
Location:New Delhi, India
Description
Radial Drilling & Tapping Machine made by Otto Muller (Germany) in excellent working condition. The Drilling Capacity of the machine is 35 mm and the Max. Height between Spindle to Table is 590 mm. The technical details are as follows -
Make - Otto Muller (Germany)
Drilling Capacity - 35 mm
Spindle Diameter - 80 mm
Spindle Taper - MT 4
Spindle Speeds - 100 rpm to 1400 rpm (Continuously Variable)
Spindle Feed Travel - 200 mm
Max. Height between Spindle to Table - 590 mm
Max. Distance between Spindle Center to Pillar - 960 mm
Min. Distance between Spindle Center to Pillar - 210 mm
Table Size - 1140 mm x 390 mm
Spindle Feed Rate of Travel - 0.08 mm/rev to 0.25 mm/rev
Head Rotation - 360 degrees
Clamping Type - Automatic ; Hydraulic
- With Automatic Tapping Feature.
- Complete with Coolant Tank and Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Otto Muller |
| Model | SR |
| Condition | Used |
| Make | Otto Muller (Germany) |
| Drilling Capacity | 35 mm |
| Spindle Diameter | 80 mm |
| Spindle Taper | MT 4 |
| Spindle Speeds | 100 rpm to 1400 rpm (Continuously Variable) |
| Spindle Feed Travel | 200 mm |
| Max. Height between Spindle to Table | 590 mm |
| Max. Distance between Spindle Center to Pillar | 960 mm |
| Min. Distance between Spindle Center to Pillar | 210 mm |
| Table Size | 1140 mm x 390 mm |
| Spindle Feed Rate of Travel | 0.08 mm/rev to 0.25 mm/rev |
| Head Rotation | 360 degrees |
| Clamping Type | Automatic ; Hydraulic |
| Other Information 1 | - With Automatic Tapping Feature. |
| Other Information 2 | - Complete with Coolant Tank and Pump. |
| Other Information 3 | - Machine is in excellent working condition. |
