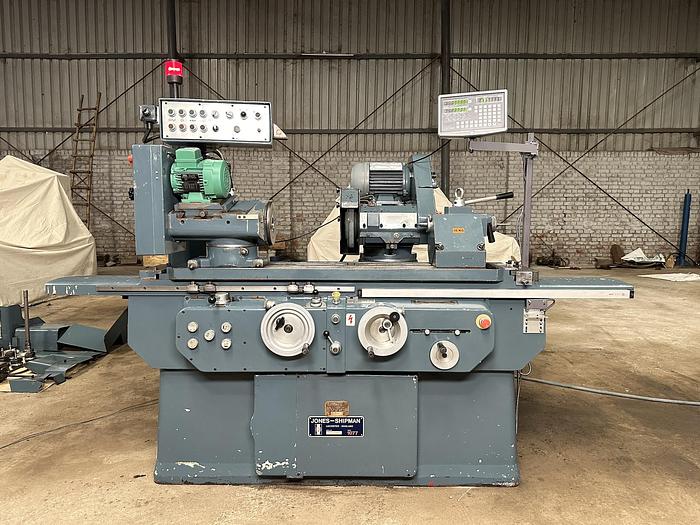

Jones Shipman 1077 High Precision Universal Cylindrical Grinder
Jones Shipman 1077 High Precision Universal Cylindrical Grinder
Contact us for price
Location:New Delhi, India
Description
High Precision Universal Cylindrical Grinding Machine made by Jones & Shipman (England) in excellent working condition. The model of the machine is 1077 and it is a High Precision Machine having a least count of 0.5 Micron (0.0005 mm). The Max. Job Diameter is 355 mm and the Maximum Length of Job is 686 mm. The machine is also equipped with its Internal Grinding Attachment and is complete with many accessories. The technical details are as follows -
Make - Jones & Shipman (England)
Model - 1077
Center Height - 178 mm (7")
Max. Diameter of Job - 355 mm (14")
Max. Length of Job - 686 mm (27")
Grinding Wheel Size - Diameter 300 mm x 40 mm Width
Table Rotation - +18 degree to -16 degree
Least Count of the Machine - 0.5 Micron (0.0005 mm)
- Equipped with its Internal Grinding Attachment.
- Equipped with 2-Axis DRO.
- Micro-feed Adjustments in both Table & Wheel-Head Travels.
- Complete with Chuck, many Wheel Dressers, Collets etc.
- Complete with spare Wheels, Splash Guards & other accessories.
- Features like Auto-Cut, Auto-Compensation, Spark-Out, etc.
- Features like Plunge Grinding, Auto-Wheel Retraction etc.
- Machine can be used in complete Auto-Cycle mode.
- Machine's readings are in both Metric (mm) and Imperial (inches).
- Operating Manual and Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jones & Shipman |
| Model | 1077 |
| Condition | Used |
| Make | Jones & Shipman (England) |
| Model | 1077 |
| Center Height | 178 mm (7") |
| Max. Diameter of Job | 355 mm (14") |
| Max. Length of Job | 686 mm (27") |
| Grinding Wheel Size | Diameter 300 mm x 40 mm Width |
| Table Rotation | +18 degree to -16 degree |
| Least Count of the Machine | 0.5 Micron (0.0005 mm) |
| Other Information 1 | - Equipped with its Internal Grinding Attachment. |
| Other Information 2 | - Equipped with 2-Axis DRO. |
| Other Information 3 | - Micro-feed Adjustments in both Table & Wheel-Head Travels. |
| Other Information 4 | - Complete with Chuck, many Wheel Dressers, Collets etc. |
| Other Information 5 | - Complete with spare Wheels, Splash Guards & other accessories. |
| Other Information 6 | - Features like Auto-Cut, Auto-Compensation, Spark-Out, etc. |
| Other Information 7 | - Features like Plunge Grinding, Auto-Wheel Retraction etc. |
| Other Information 8 | - Machine can be used in complete Auto-Cycle mode. |
| Other Information 9 | - Machine's readings are in both Metric (mm) and Imperial (inches). |
| Other Information 10 | - Operating Manual and Electrical Drawings are available. |
| Other Information 11 | - Machine is in excellent working condition. |
