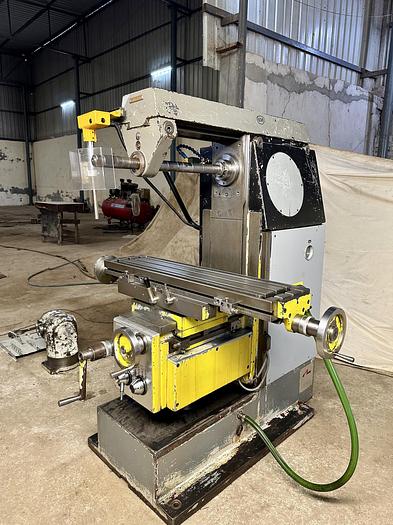

Viking 950 mm x 230 mm Universal Milling Machine
Viking 950 mm x 230 mm Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description
Universal Milling Machine made by Viking (Belgium) in excellent working condition. The model of the machine is 1-MA and the Table Size is 950 mm x 230 mm. The machine is complete with its Arbor and Bracket for Horizontal Milling Operations. The machine is also complete with its Double-Swivel Milling Head suitable for Vertical and Angular Milling operations. The technical details are as follows -
Make - Viking (Belgium)
Model - 1-MA
Table Size - 950 mm x 230 mm
Longitudinal Travel - 600 mm
Cross Travel - 210 mm
Vertical Travel - 425 mm
Spindle Speeds - 31.5 rpm to 1000 rpm
Spindle Taper - ISO 40
Feed Rates of Travel - 8 mm/min to 200 mm/min
Table Rotation - +45 degree to -45 degree
- Automatic Feed & Rapid Travels on the Longitudinal Travel.
- Complete with Universal type Double-Swivel Milling Head.
- Machine can do Horizontal, Vertical and Angular Milling Operations.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Viking |
| Model | 1-MA |
| Condition | Used |
| Make | Viking (Belgium) |
| Model | 1-MA |
| Table Size | 950 mm x 230 mm |
| Longitudinal Travel | 600 mm |
| Cross Travel | 210 mm |
| Vertical Travel | 425 mm |
| Spindle Speeds | 31.5 rpm to 1000 rpm |
| Spindle Taper | ISO 40 |
| Feed Rates of Travel | 8 mm/min to 200 mm/min |
| Table Rotation | +45 degree to -45 degree |
| Other Information 1 | - Automatic Feed & Rapid Travels on the Longitudinal Travel. |
| Other Information 2 | - Complete with Universal type Double-Swivel Milling Head. |
| Other Information 3 | - Machine can do Horizontal, Vertical and Angular Milling Operations. |
| Other Information 4 | - Machine is in excellent working condition. |
