Ernault Somua 220 mm x 650 mm Surface Grinder Machine
Ernault Somua 220 mm x 650 mm Surface Grinder Machine
Contact us for price
Location:New Delhi, India
Description

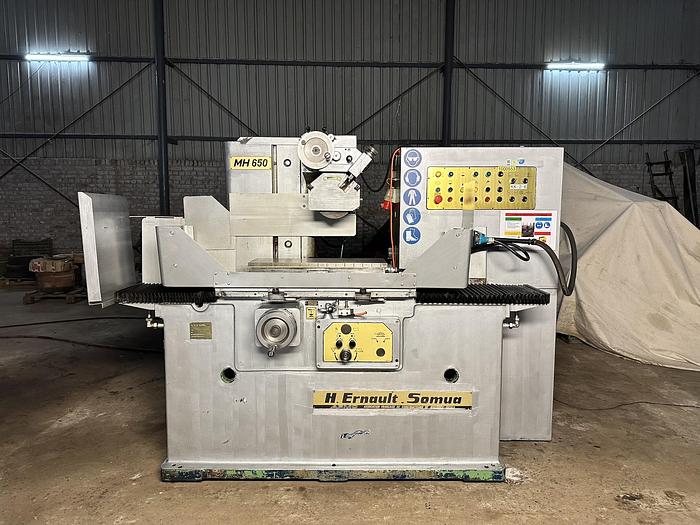

H. Ernault Somua (France) make Hydraulic Surface Grinding Machine in excellent working condition. The model of the machine is MH 650 and the Grinding Capacity is 220 mm x 650 mm. The Least Count of the Machine is 2 Microns (0.002 mm). The technical details are as follows -
Make - H. Ernault Somua (France)
Model - MH 650
Magnet Size - 220 mm x 650 mm
Grinding Wheel Size - Diameter 225 mm x 32 mm Width
Max. Height between Magnet Top to Wheel Center - 300 mm
Least Count of the Machine - 2 Microns (0.002 mm)
Longitudinal Travel of the Table - 690 mm
Cross Travel of the Wheel-Head - 250 mm
- With Motorised Rapid Vertical Travels.
- Equipped with a Wheel Dresser.
- Complete with Coolant Tank and Pump.
- Operating Manual of the Machine is available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | H. Ernault Somua |
| Model | MH 650 |
| Condition | Used |
| Make | H. Ernault Somua (France) |
| Model | MH 650 |
| Magnet Size | 220 mm x 650 mm |
| Grinding Wheel Size | Diameter 225 mm x 32 mm Width |
| Max. Height between Magnet Top to Wheel Center | 300 mm |
| Least Count of the Machine | 2 Microns (0.002 mm) |
| Longitudinal Travel of the Table | 690 mm |
| Cross Travel of the Wheel-Head | 250 mm |
| Other Information 1 | - With Motorised Rapid Vertical Travels. |
| Other Information 2 | - Equipped with a Wheel Dresser. |
| Other Information 3 | - Complete with Coolant Tank and Pump. |
| Other Information 4 | - Operating Manual of the Machine is available. |
| Other Information 5 | - Machine is in excellent working condition. |
