TOS HOV40 Heavy Duty Slotting Machine
TOS HOV40 Heavy Duty Slotting Machine
Contact us for price
Location:New Delhi, India
Description

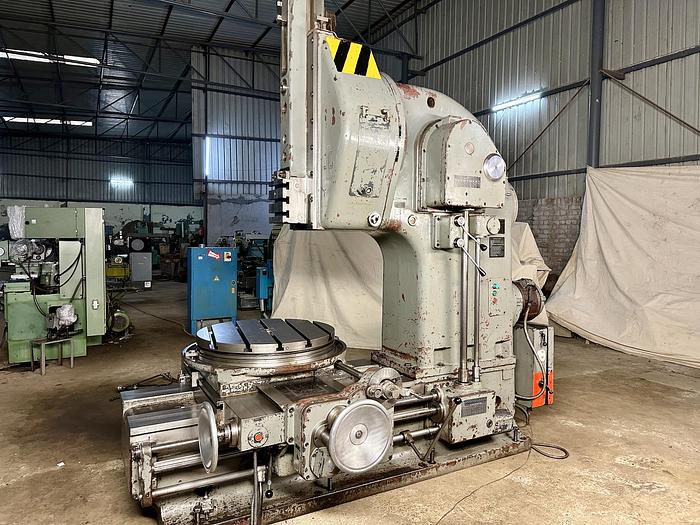

Heavy Duty Vertical Slotting Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is HOV40 and the Maximum Stroke Length is 440 mm. The machine has Rapid & Feed Travels on the Longitudinal Travel, Cross Travel and on Table Rotation. The machine is also capable of doing Taper Slotting. The technical details are as follows -
Make - TOS (Czech Republic)
Model - HOV40
Max. Stroke Length - 440 mm
Table Diameter - 800 mm
Longitudinal Travel - 850 mm
Cross Travel - 600 mm
Height between Table to Machine Body - 600 mm
Distance between Toolhead edge to Column - 900 mm
Max. Distance between Table Center to Column - 1300 mm
Stroke Rate - 11.2 strokes/min to 71 strokes/min
Feed Travel Rate - 0.2 mm/stroke to 2.0 mm/stroke
Head Rotation - +10 degree to -10 degree
- Feed & Rapid Travel on Table Rotation and on Cross & Longitudinal Travels.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | HOV40 |
| Condition | Used |
| Make | TOS (Czech Republic) |
| Model | HOV40 |
| Max. Stroke Length | 440 mm |
| Table Diameter | 800 mm |
| Longitudinal Travel | 850 mm |
| Cross Travel | 600 mm |
| Height between Table to Machine Body | 600 mm |
| Distance between Toolhead edge to Column | 900 mm |
| Max. Distance between Table Center to Column | 1300 mm |
| Stroke Rate | 11.2 strokes/min to 71 strokes/min |
| Feed Travel Rate | 0.2 mm/stroke to 2.0 mm/stroke |
| Head Rotation | +10 degree to -10 degree |
| Other Information 1 | - Feed & Rapid Travel on Table Rotation and on Cross & Longitudinal Travels. |
| Other Information 2 | - Machine is in excellent working condition. |
