Sachman Italy 2000 x 730 Bed Type Milling Machine
Sachman Italy 2000 x 730 Bed Type Milling Machine
Contact us for price
Location:New Delhi, India
Description

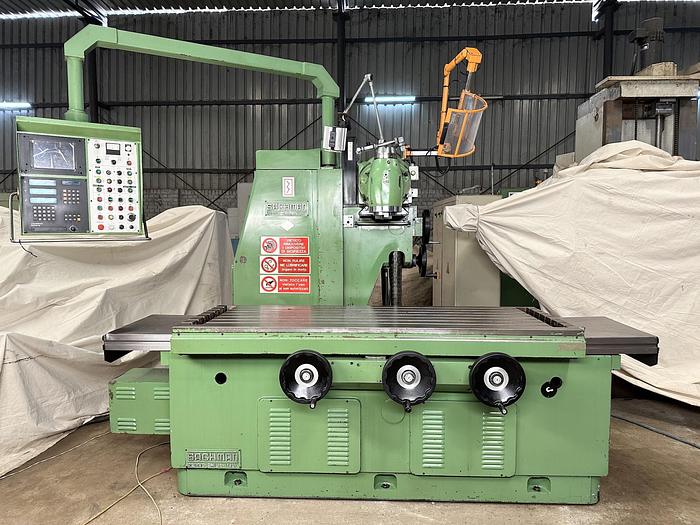

Heavy Duty Bed type Milling Machine made by Sachman (Italy) in excellent working condition. The Table Size of the machine is 2000 mm x 730 mm and it is equipped with Ball-Screw on all the 3-Axis. The machine has a Double Swivel type Universal Milling Head capable of Vertical, Horizontal and Angular Milling operations. The technical details of the machine is as follows -
Make - Sachman (Italy)
Table Size - 2000 mm x 730 mm
XYZ Travel - 1750 mm x 800 mm x 725 mm
Spindle Speeds - 30 rpm to 2000 rpm
Spindle Taper - ISO 50
Table Feed Travel Rates - 0 mm/min to 1200 mm/min (Continuously variable)
Spindle Motor - 11 kW
Max. Height between Table to Spindle Nose - 760 mm
- Equipped with Ball-Screws in all the 3-Axis.
- Hydraulic Clamping of the Tool Holder.
- Equipped with Heidenhain make 3-Axis programmable DRO.
- Universal Double-Swivel type Head for Vertical, Horizontal & Angular Milling.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Sachman |
| Model | 2000 |
| Condition | Used |
| Make | Sachman (Italy) |
| Table Size | 2000 mm x 730 mm |
| XYZ Travel | 1750 mm x 800 mm x 725 mm |
| Spindle Speeds | 30 rpm to 2000 rpm |
| Spindle Taper | ISO 50 |
| Table Feed Travel Rates | 0 mm/min to 1200 mm/min (Continuously variable) |
| Spindle Motor | 11 kW |
| Max. Height between Table to Spindle Nose | 760 mm |
| Other Information 1 | - Equipped with Ball-Screws in all the 3-Axis. |
| Other Information 2 | - Hydraulic Clamping of the Tool Holder. |
| Other Information 3 | - Equipped with Heidenhain make 3-Axis programmable DRO. |
| Other Information 4 | - Universal Double-Swivel type Head for Vertical, Horizontal & Angular Milling. |
| Other Information 5 | - Machine is in excellent working condition. |
