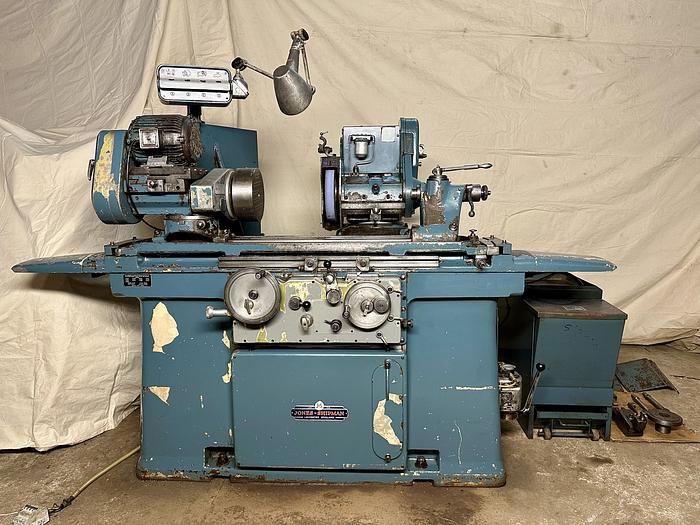

Jones and Shipman 1302 Universal Cylindrical Grinding Machine
Jones and Shipman 1302 Universal Cylindrical Grinding Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description
Jones & Shipman (England) make Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is 1302 and the Grinding Capacity is 355 mm Diameter and 686 mm Length of Job. The technical details are as follows -
Make - Jones & Shipman (England)
Model - 1302
Center Height - 178 mm
Max. Job Diameter - 355 mm
Max. Length of Job - 686 mm
Grinding Wheel Size - Diameter 305 mm x 40 mm Width
Work-Head Speeds - 25 rpm to 293 rpm
Table Rotation - 20 Degree to -18 Degree
- Equipped with Internal Grinding Attachment.
- Micro-Feed Adjustments on both Table & Wheel-Head Travel.
- Complete with Wheel Dresser, Coolant Tank & Pump etc.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jones & Shipman |
| Model | 1302 |
| Condition | Used |
| Make | Jones & Shipman (England) |
| Model | 1302 |
| Center Height | 178 mm |
| Max. Job Diameter | 355 mm |
| Max. Length of Job | 686 mm |
| Grinding Wheel Size | Diameter 305 mm x 40 mm Width |
| Work-Head Speeds | 25 rpm to 293 rpm |
| Table Rotation | 20 Degree to -18 Degree |
| Other Information 1 | - Equipped with Internal Grinding Attachment. |
| Other Information 2 | - Micro-Feed Adjustments on both Table & Wheel-Head Travel. |
| Other Information 3 | - Complete with Wheel Dresser, Coolant Tank & Pump etc. |
| Other Information 4 | - Machine is in excellent working condition. |
