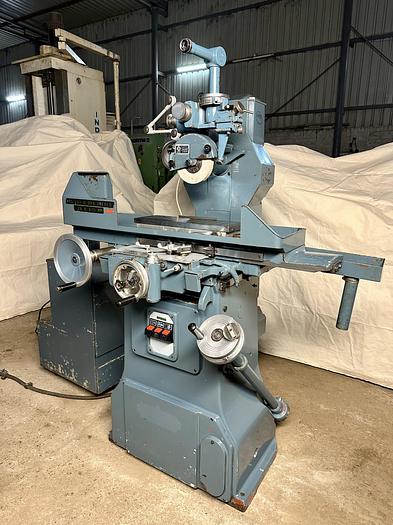

Jones and Shipman 540 High Precision Surface Grinder
Jones and Shipman 540 High Precision Surface Grinder
Contact us for price
Location:New Delhi, India
Description
High Precision Surface Grinding Machine made by Jones & Shipman (England) in excellent working condition. It is a Hydraulic type Surface Grinder having a Grinding Capacity of 150 mm x 450 mm. The machine is equipped with a special Wheel Dresser capable of Flat, Angular and Profile Wheel Dressing. The machine is also complete with its Dust Collection Unit. The technical details are as follows -
Make - Jones & Shipman (England)
Model - 540
Magnet Size - 152 mm x 458 mm
Longitudinal Travel - 480 mm
Cross Travel - 170 mm
Grinding Wheel Diameter - 178 mm
Least Count of Vertical Travel - 2 Microns (0.002 mm)
- Micro Feed Adjustments in both Vertical & Cross Travel.
- Graduations are in both - Metric (mm) and Imperial (inch).
- Equipped with a Wheel-Top mounted special Dressing Unit.
- Complete with a Dust Collector.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jones & Shipman |
| Model | 540 |
| Condition | Used |
| Make | Jones & Shipman (England) |
| Model | 540 |
| Magnet Size | 152 mm x 458 mm |
| Longitudinal Travel | 480 mm |
| Cross Travel | 170 mm |
| Grinding Wheel Diameter | 178 mm |
| Least Count of Vertical Travel | 2 Microns (0.002 mm) |
| Other Information 1 | - Micro Feed Adjustments in both Vertical & Cross Travel. |
| Other Information 2 | - Graduations are in both - Metric (mm) and Imperial (inch). |
| Other Information 3 | - Equipped with a Wheel-Top mounted special Dressing Unit. |
| Other Information 4 | - Complete with a Dust Collector. |
| Other Information 5 | - Machine is in excellent working condition. |
