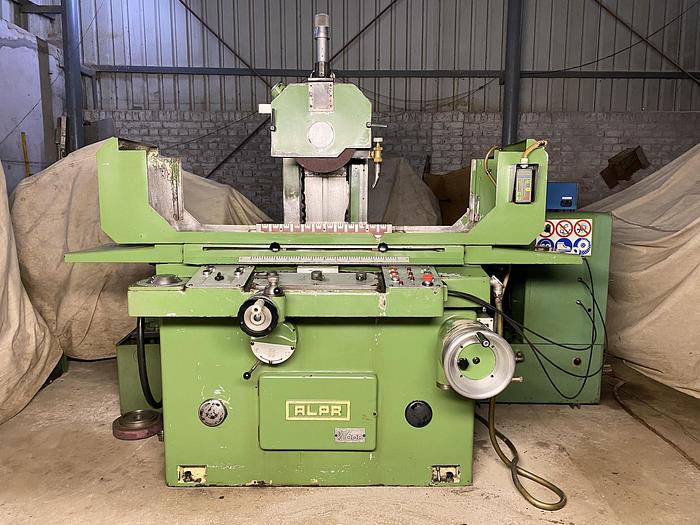

Alpa Italy 300 x 600 Surface Grinding Machine
Alpa Italy 300 x 600 Surface Grinding Machine
Contact us for price
Location:New Delhi, India
Description
Surface Grinding Machine made by Alpa (Italy) in excellent working condition. The model of the machine is RT 600 and the Job Grinding Capacity of the machine is 300 mm x 600 mm. The Longitudinal and Cross Travel of the machine is 700 mm and 350 mm respectively. The machine is also mounted with a wheel-top mounted Hydraulic Wheel Dresser. The technical details are as follows -
Make - Alpa (Italy)
Model - RT 600
Grinding Capacity - 300 mm x 600 mm
Longitudinal Travel of Table - 700 mm
Cross Travel of Table - 350 mm
Grinding Wheel Size - Diameter 400 mm X 50 mm Width
Current Electro-Magnet Size - 200 mm x 600 mm
Max. Distance between Table Top to Wheel Center - 500 mm
- Features like Automatic Depth Adjustment "Auto-Cut".
- Equipped with Wheel-top mounted Hydraulic Wheel Dresser.
- Complete with Coolant Tank, Pump and spare Wheel Flange.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Alpa |
| Model | RT 600 |
| Condition | Used |
| Make | Alpa (Italy) |
| Model | RT 600 |
| Grinding Capacity | 300 mm x 600 mm |
| Longitudinal Travel of Table | 700 mm |
| Cross Travel of Table | 350 mm |
| Grinding Wheel Size | Diameter 400 mm X 50 mm Width |
| Current Electro-Magnet Size | 200 mm x 600 mm |
| Max. Distance between Table Top to Wheel Center | 500 mm |
| Other Information 1 | - Features like Automatic Depth Adjustment "Auto-Cut". |
| Other Information 2 | - Equipped with Wheel-top mounted Hydraulic Wheel Dresser. |
| Other Information 3 | - Complete with Coolant Tank, Pump and spare Wheel Flange. |
| Other Information 4 | - Machine is in excellent working condition. |
