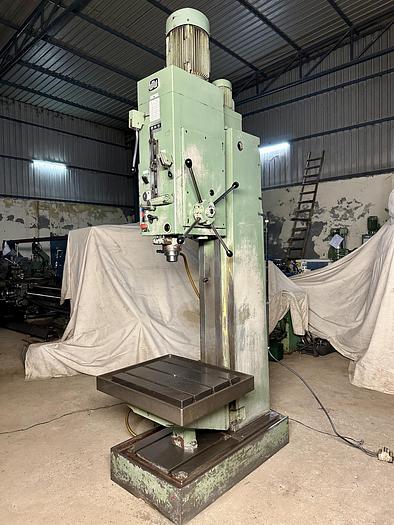

WMW 80 mm Capacity Drilling and Tapping Machine
WMW 80 mm Capacity Drilling and Tapping Machine
Contact us for price
Location:New Delhi, India
Description
WMW (Germany) make Heavy Duty Column Drilling and Tapping Machine in excellent working condition. The model of the machine is BK 5 AI and the Drilling Capacity in Steel in 80 mm. The machine is suitable for Drilling, Tapping and Reaming Operations. The technical details are as follows -
Make - WMW (Germany)
Model - BK 5 AI
Drilling Capacity - 80 mm
Tapping Capacity - 50 mm
Spindle Taper - MT 5
Spindle Feed Travel - 280 mm
Spindle Speeds - 32 rpm to 1400 rpm
Feed Rate of Travel - 0.11 mm/rev to 1.73 mm/rev
Table Size - 625 mm x 500 mm
Spindle Diameter - 85 mm
Distance between Spindle Center to Vertical Column - 355 mm
Max. Height between Spindle to Table Top - 750 mm
Max. Height between Spindle to Base Top - 1200 mm
- Features like Automatic Tapping, Automatic Reaming etc.
- Motorised Up/Down Movement of Drilling Head.
- Complete with Coolant Tank and Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | WMW |
| Model | BK 5 AI |
| Condition | Used |
| Make | WMW (Germany) |
| Model | BK 5 AI |
| Drilling Capacity | 80 mm |
| Tapping Capacity | 50 mm |
| Spindle Taper | MT 5 |
| Spindle Feed Travel | 280 mm |
| Spindle Speeds | 32 rpm to 1400 rpm |
| Feed Rate of Travel | 0.11 mm/rev to 1.73 mm/rev |
| Table Size | 625 mm x 500 mm |
| Spindle Diameter | 85 mm |
| Distance between Spindle Center to Vertical Column | 355 mm |
| Max. Height between Spindle to Table Top | 750 mm |
| Max. Height between Spindle to Base Top | 1200 mm |
| Other Information 1 | - Features like Automatic Tapping, Automatic Reaming etc. |
| Other Information 2 | - Motorised Up/Down Movement of Drilling Head. |
| Other Information 3 | - Complete with Coolant Tank and Pump. |
| Other Information 4 | - Machine is in excellent working condition. |
