WMW Modul ZFWZ 800 x 10 Gear Hobbing Machine
WMW Modul ZFWZ 800 x 10 Gear Hobbing Machine
Contact us for price
Location:New Delhi, India
Description

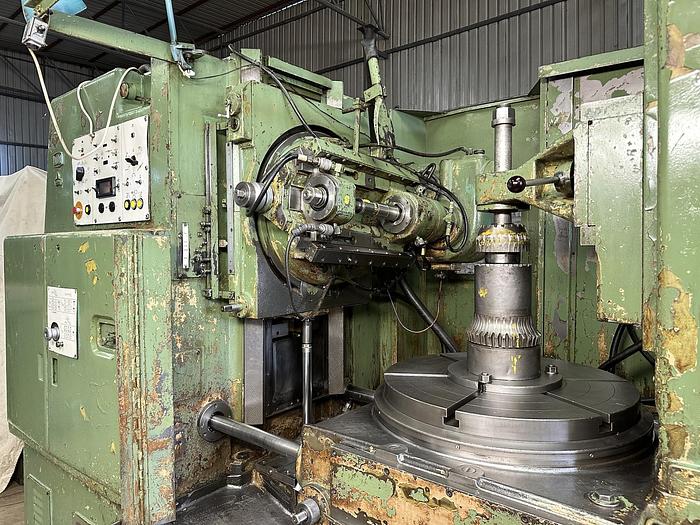

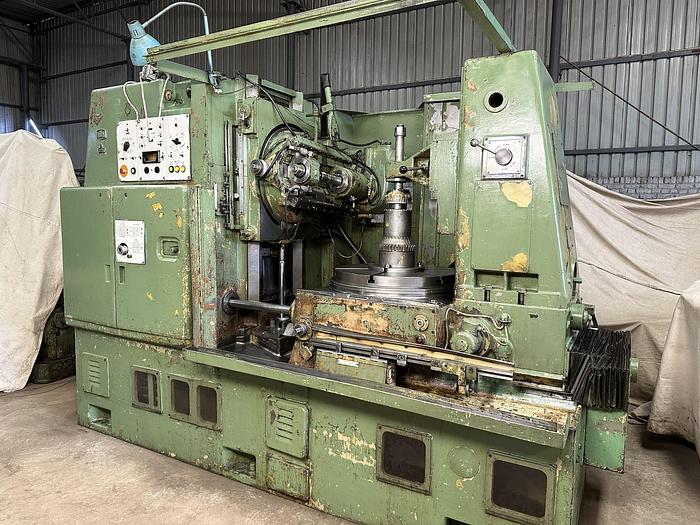

WMW-Modul (Germany) make Heavy Duty Gear Hobbing Machine in excellent working condition. The model of the machine is ZFWZ 800 x 10 II and it is an Auto-Cycle type Hydraulic Gear Hobbing Machine. The Maximum Module Capacity is 10 Module and the Maximum Gear Diameter is 800 mm. The technical details are as follows -
Make - WMW - Modul (Germany)
Model - ZFWZ 800 x 10 II
Max. Module - 10 Module
Max. Gear Diameter - 800 mm
Max. Vertical Travel of Hobbing Head - 410 mm
Max. Hob Cutter Diameter - 195 mm
Max. Hob Cutter Length - 220 mm
Table Diameter - 700 mm
Max. Gear Diameter (with Tail-Stock) - 500 mm
Max. Helical Angle - +45 degree to -45 degree

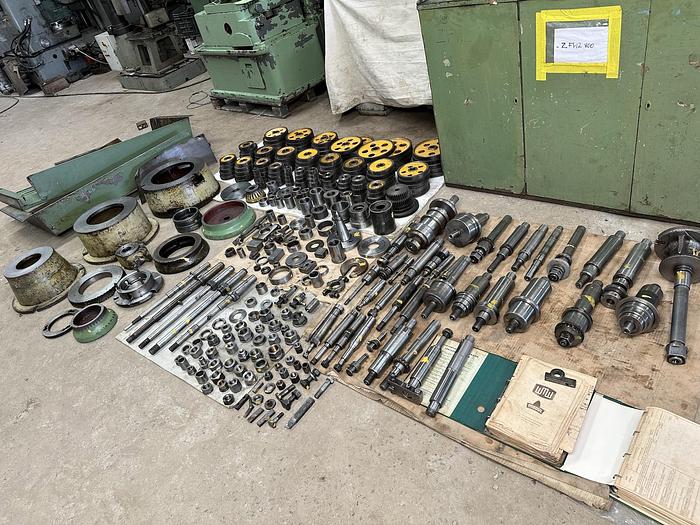

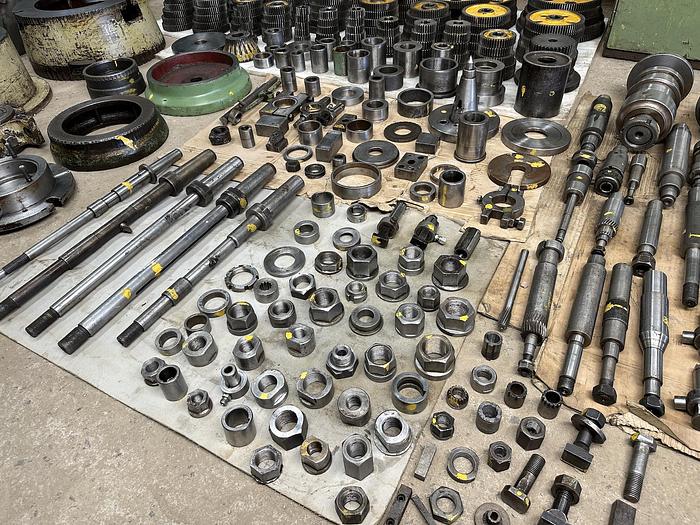

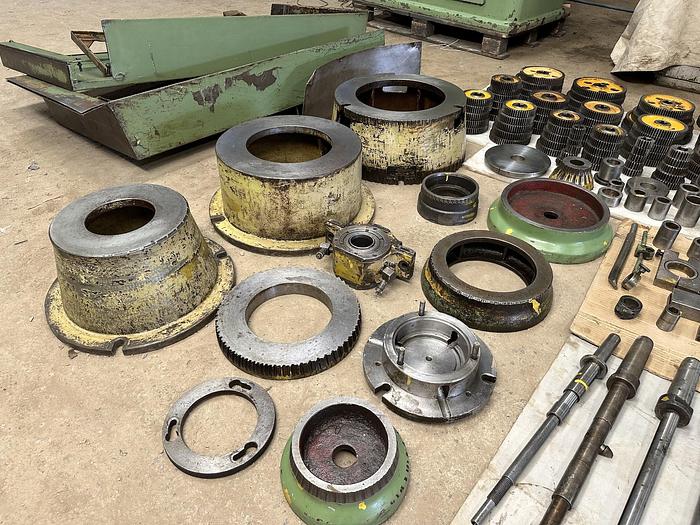

- With lots of Accessories like Arbours, Mandrels, Job Supports etc.
- Complete with Change Gears and many other accessories.
- Operating Manuals of the Machine are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | WMW - Modul |
| Model | ZFWZ 800 x 10 II |
| Condition | Used |
| Make | WMW - Modul (Germany) |
| Model | ZFWZ 800 x 10 II |
| Max. Module | 10 Module |
| Max. Gear Diameter | 800 mm |
| Max. Vertical Travel of Hobbing Head | 410 mm |
| Max. Hob Cutter Diameter | 195 mm |
| Max. Hob Cutter Length | 220 mm |
| Table Diameter | 700 mm |
| Max. Gear Diameter (with Tail-Stock) | 500 mm |
| Max. Helical Angle | +45 degree to -45 degree |
| Other Information 1 | - With lots of Accessories like Arbours, Mandrels, Job Supports etc. |
| Other Information 2 | - Complete with Change Gears and many other accessories. |
| Other Information 3 | - Operating Manuals of the Machine are available. |
| Other Information 4 | - Machine is in excellent working condition. |
