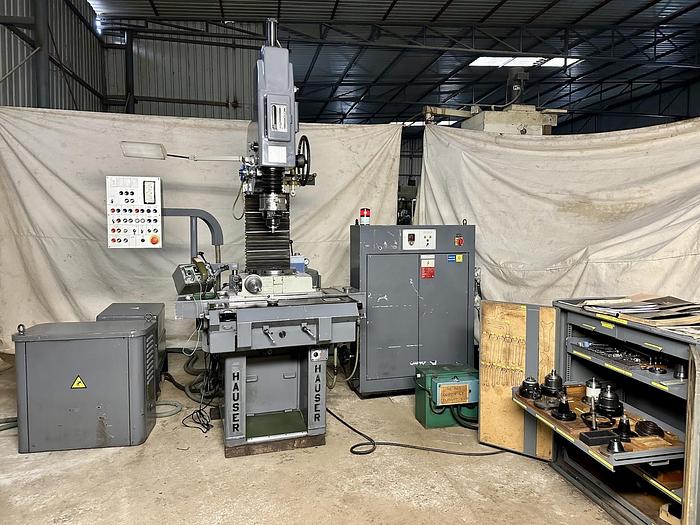

Hauser 3SMO Jig Grinding Machine

Hauser (Switzerland) make Jig Grinding Machine in excellent working condition. The model of the machine is 3SMO and the Table Size is 595 mm x 320 mm. The machine is complete with many different types of Spindle Heads and is complete with lots of other accessories. The Maximum Spindle Speed in this machine is 225,000 rpm. Operating Manuals and Electrical Drawings are also available with the machine.

The technical details are as follows -

Make - Hauser (Switzerland)

Model - 3SMO

Table Size - 595 mm x 320 mm

XY Travel of Table - 400 mm x 250 mm

Maximum Grinding Diameter - 280 mm

Maximum Vertical Stroke of Spindle - 110 mm

Maximum Spindle Speeds - 225,000 rpm

Maximum Speed of Spindle Head - 330 rpm

Vertical Travel of the Column - 500 mm

Max. Distance between Table Top to Spindle - 655 mm

Distance between Spindle Center to Vertical Slide - 310 mm

Rotary Table Diameter - 300 mm

- Complete with many different types of Grinding Spindle Heads.

- Complete with many other accessories including Intermediate Plate.

- Operating Manuals and Electrical Drawings are available.

- Machine is in excellent working condition.
