Asquith 75 mm Radial Drilling Machine
Asquith 75 mm Radial Drilling Machine
Contact us for price
Location:New Delhi, India
Description

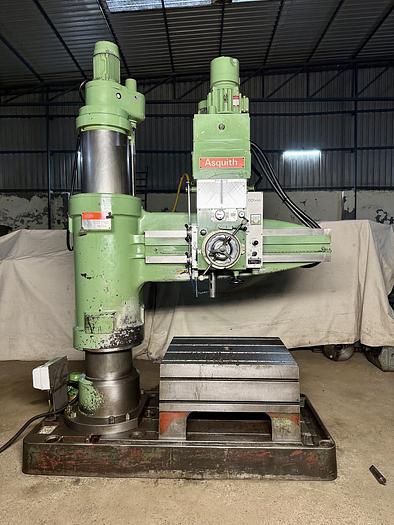

Asquith (England) make Heavy Duty Radial Drilling Machine in excellent working condition. The model of the Machine is ODI Mk2 and the Drilling Capacity is 75 mm. The machine has Hydraulic Clamping of the Arm and Drilling Head. The technical details are as follows -
Make - Asquith (England)
Model - ODI Mk2
Drilling Capacity - 75 mm
Spindle Diameter - 83 mm
Arm Length - 1350 mm
Spindle Speeds - 22 rpm to 1000 rpm
Spindle Taper - MT 5
Max. Spindle Feed Travel - 360 mm
Spindle Feed Travel Rates - 0.051 mm/rev to 1.016 mm/rev
Vertical Travel of the Arm - 630 mm
Table Size - 910 mm x 760 mm
Clamping Type - Hydraulic
- Equipped with an emergency Spindle Brake.
- Electrical Drawings of the Machine are available.
- Equipped with Coolant Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Asquith |
| Model | ODI Mk2 |
| Condition | Used |
| Make | Asquith (England) |
| Model | ODI Mk2 |
| Drilling Capacity | 75 mm |
| Spindle Diameter | 83 mm |
| Arm Length | 1350 mm |
| Spindle Speeds | 22 rpm to 1000 rpm |
| Spindle Taper | MT 5 |
| Max. Spindle Feed Travel | 360 mm |
| Spindle Feed Travel Rates | 0.051 mm/rev to 1.016 mm/rev |
| Vertical Travel of the Arm | 630 mm |
| Table Size | 910 mm x 760 mm |
| Clamping Type | Hydraulic |
| Other Information 1 | - Equipped with an emergency Spindle Brake. |
| Other Information 2 | - Electrical Drawings of the Machine are available. |
| Other Information 3 | - Equipped with Coolant Pump. |
| Other Information 4 | - Machine is in excellent working condition. |
