Caber 38 mm All Geared Pillar Drilling Machine
Caber 38 mm All Geared Pillar Drilling Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description

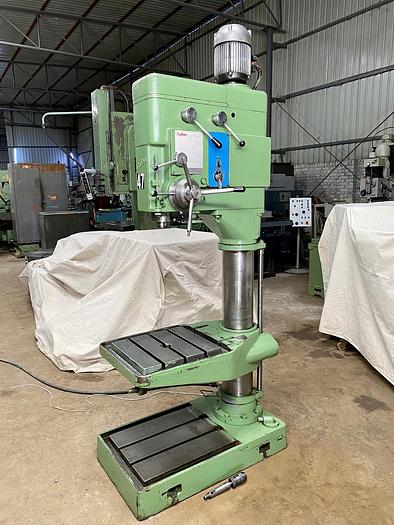

Caber (Italy) make All Geared type Pillar Drilling Machine in excellent working condition. The model of the machine is Mod. 58 and the Drilling Capacity is 38 mm. The technical details are as follows -
Make - Caber (Italy)
Model - Mod. 58
Drilling Capacity - 38 mm
Spindle Diameter - 70 mm
Spindle Feed Travel - 195 mm
Spindle Taper - MT 4
Spindle Speeds - 60 rpm to 1000 rpm
Spindle Feed Rates - 0.06 mm/rev to 0.30 mm/rev
Table Size - 395 mm x 435 mm
Max. Height between Base Clamping Surface to Spindle - 1140 mm
- Table can be moved Up/Down and can also be Rotated.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Caber |
| Model | Mod. 58 |
| Condition | Used |
| Make | Caber (Italy) |
| Model | Mod. 58 |
| Drilling Capacity | 38 mm |
| Spindle Diameter | 70 mm |
| Spindle Feed Travel | 195 mm |
| Spindle Taper | MT 4 |
| Spindle Speeds | 60 rpm to 1000 rpm |
| Spindle Feed Rates | 0.06 mm/rev to 0.30 mm/rev |
| Table Size | 395 mm x 435 mm |
| Max. Height between Base Clamping Surface to Spindle | 1140 mm |
| Other Information 1 | - Table can be moved Up/Down and can also be Rotated. |
| Other Information 2 | - Machine is in excellent working condition. |
