Eyushiuak Taiwan 355 x 710 Automatic Surface Grinder

Eyushiuak Taiwan 355 x 710 Automatic Surface Grinder

Contact us for price

Location:New Delhi, India

orCall +91 98182 75782

Description

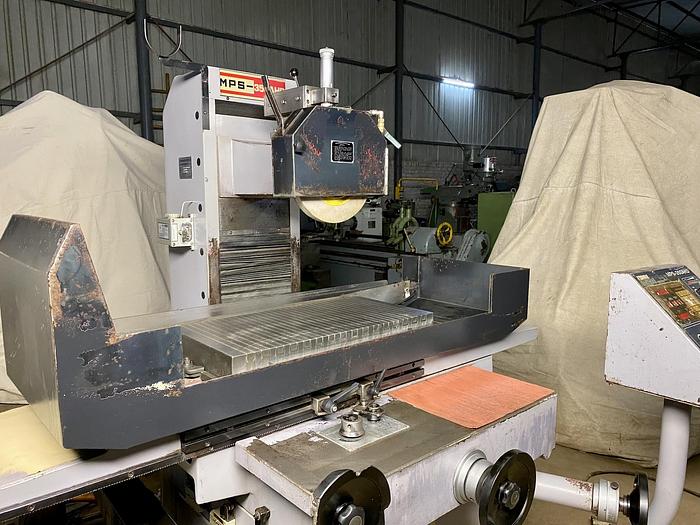

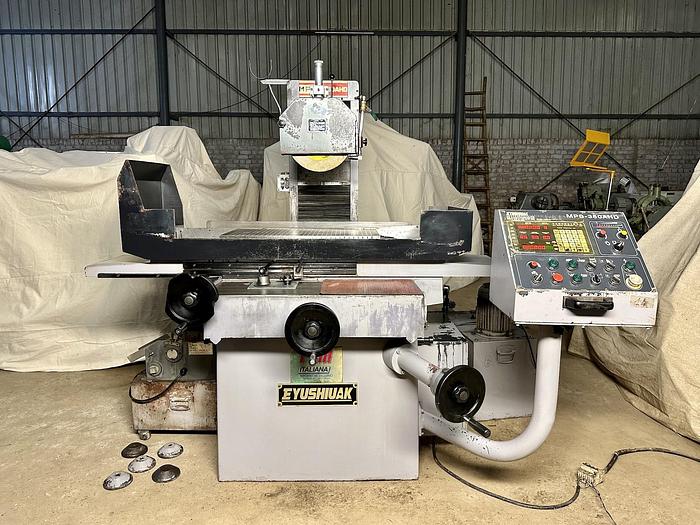

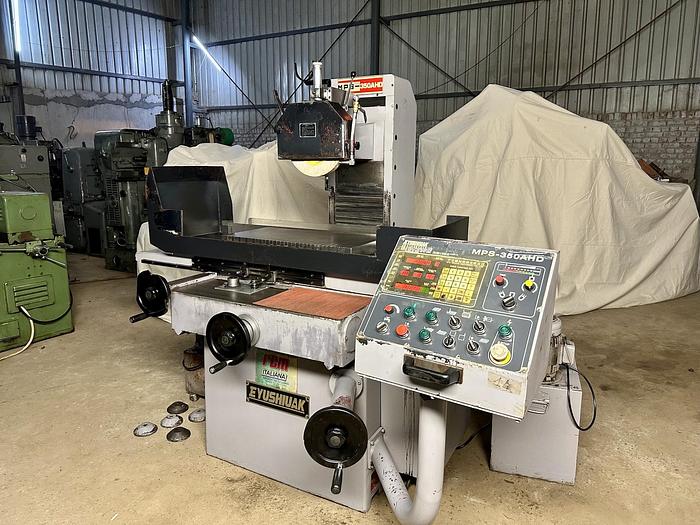

Eyushiuak (Taiwan) make Fully Automatic Precision Surface Grinding Machine in excellent working condition. The model of the machine is MPS-350AHD and the Magnet Size is 355 mm x 710 mm. It is a an Auto-Cycle machine having a Minimum Feed of 1 Micron (0.001 mm) in the Vertical Travel. The technical details are as follows -


Make - Eyushiuak (Taiwan)

Model - MPS-350AHD

Magnet Size - 355 mm x 710 mm

Longitudinal Travel - 760 mm

Cross Travel - 390 mm

Grinding Wheel Diameter - 300 mm

Grinding Wheel Width - 38 mm

Minimum Feed Travel in Vertical Axis - 1 Micron (0.001 mm)

Max. Height between Magnet to Wheel Center - 435 mm

Resolution of the Vertical Axis DRO - 2 Microns (0.002 mm)

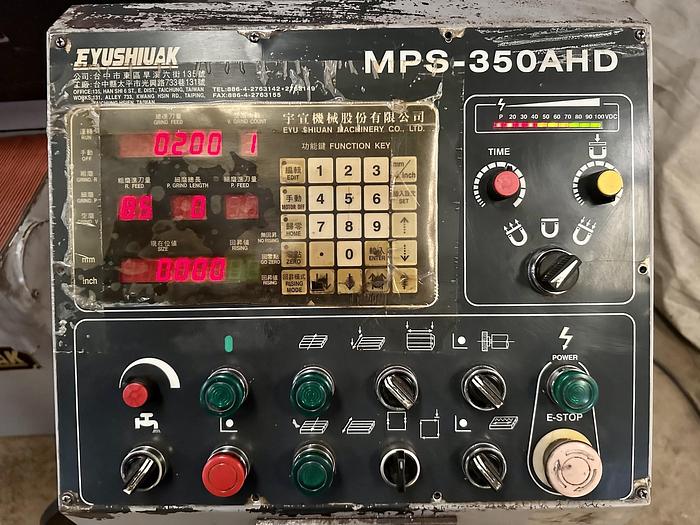

- Programmable Machine with complete Auto-Cycle Working.

- Features like Rough Cut, Finish Cut, & Spark-Out.

- Features like Automatic Wheel Retraction, Plunge Grinding etc.

- Electro-Magnet with feature of De-Magnetisation, Variable Strength, & Timer.

- Equipped with Wheel Top Mounted Wheel Dresser.

- Complete with Magnetic Coolant Filtration Unit, Tank & Pump.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerEyushiuak
ModelMPS-350AHD
ConditionUsed
MakeEyushiuak (Taiwan)
ModelMPS-350AHD
Magnet Size355 mm x 710 mm
Longitudinal Travel760 mm
Cross Travel390 mm
Grinding Wheel Diameter300 mm
Grinding Wheel Width38 mm
Minimum Feed Travel in Vertical Axis1 Micron (0.001 mm)
Max. Height between Magnet to Wheel Center435 mm
Resolution of the Vertical Axis DRO2 Microns (0.002 mm)
Other Information 1- Programmable Machine with complete Auto-Cycle Working.
Other Information 2- Features like Rough Cut, Finish Cut, & Spark-Out.
Other Information 3- Features like Automatic Wheel Retraction, Plunge Grinding etc.
Other Information 4- Electro-Magnet with feature of De-Magnetisation, Variable Strength, & Timer.
Other Information 5- Equipped with Wheel Top Mounted Wheel Dresser.
Other Information 6- Complete with Magnetic Coolant Filtration Unit, Tank & Pump.
Other Information 7- Machine is in excellent working condition.
