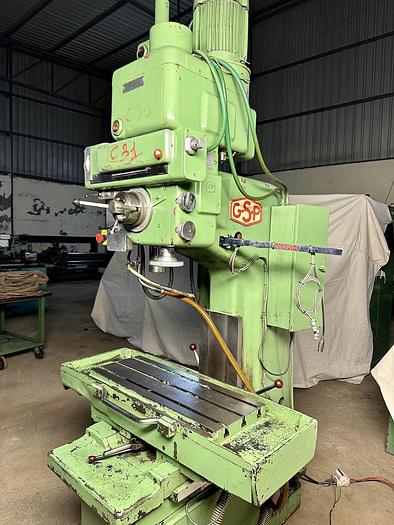

GSP France Automatic Drilling and Tapping Machine
GSP France Automatic Drilling and Tapping Machine
Contact us for price
Location:New Delhi, India
Description
GSP (France) make Automatic Drilling & Tapping Machine in excellent working condition. It is an all-Geared type machine having a Drilling Capacity of 50 mm and Spindle Diameter of 95 mm. The technical details are as follows -
Make - GSP (France)
Capacity - 50 mm
Spindle Diameter - 95 mm
Table Size - 800 mm x 400 mm
Spindle Feed Travel - 325 mm
Spindle Taper - MT 4
XYZ Travel of Table - 415 mm x 300 mm x 350 mm
Max. Distance between Table & Spindle - 600 mm
Distance between Spindle Center to Machine Body - 415 mm
Spindle Speeds - 40 rpm to 1800 rpm
Spindle Feed Rates of Travel - 0.045 mm/rev to 0.50 mm/rev
No. of Stop Limits that can be set for Spindle Travel - 20
- Automatic Tapping Feature.
- Automatic Hydraulic Gear Shifting.
- Micro-Feed for Precise adjustment of Automatic Depth Stop Limit.
- Equipped with Coolant Pump & Tank.
- Machine is in excellent working condition.
Specifications
| Manufacturer | GSP |
| Model | 50 |
| Condition | Used |
| Make | GSP (France) |
| Capacity | 50 mm |
| Spindle Diameter | 95 mm |
| Table Size | 800 mm x 400 mm |
| Spindle Feed Travel | 325 mm |
| Spindle Taper | MT 4 |
| XYZ Travel of Table | 415 mm x 300 mm x 350 mm |
| Max. Distance between Table & Spindle | 600 mm |
| Distance between Spindle Center to Machine Body | 415 mm |
| Spindle Speeds | 40 rpm to 1800 rpm |
| Spindle Feed Rates of Travel | 0.045 mm/rev to 0.50 mm/rev |
| No. of Stop Limits that can be set for Spindle Travel | 20 |
| Other Information 1 | - Automatic Tapping Feature. |
| Other Information 2 | - Automatic Hydraulic Gear Shifting. |
| Other Information 3 | - Micro-Feed for Precise adjustment of Automatic Depth Stop Limit. |
| Other Information 4 | - Equipped with Coolant Pump & Tank. |
| Other Information 5 | - Machine is in excellent working condition. |
