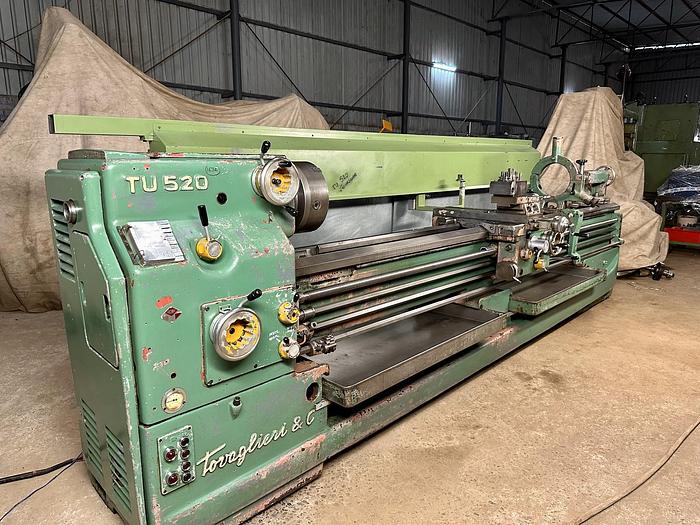

Tovaglieri TU520 3000 mm Lathe Machine
Tovaglieri TU520 3000 mm Lathe Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description
Tovaglieri (Italy) make Lathe Machine in excellent working condition. The model of the machine is TU 520 and the Max. Length of Job is 3000 mm. The machine is complete with its 3-point Steady and its operating manual. The technical details are as follows -
Make - Tovaglieri (Italy)
Model - TU 520
Center Height - 260 mm
Max. Length of Job - 3000 mm
Max. Job Diameter over Bed - 520 mm
Max. Job Diameter over Cross-Slide - 320 mm
Bed Width - 370 mm
Chuck Diameter - 310 mm
Max. Job Diameter in Gap - 715 mm
Spindle Speeds - 18 rpm to 1600 rpm
Spindle Bore - 51 mm
- Complete with 3-point steady.
- Operating Manual is available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Tovaglieri |
| Model | TU 520 |
| Condition | Used |
| Make | Tovaglieri (Italy) |
| Model | TU 520 |
| Center Height | 260 mm |
| Max. Length of Job | 3000 mm |
| Max. Job Diameter over Bed | 520 mm |
| Max. Job Diameter over Cross-Slide | 320 mm |
| Bed Width | 370 mm |
| Chuck Diameter | 310 mm |
| Max. Job Diameter in Gap | 715 mm |
| Spindle Speeds | 18 rpm to 1600 rpm |
| Spindle Bore | 51 mm |
| Other Information 1 | - Complete with 3-point steady. |
| Other Information 2 | - Operating Manual is available. |
| Other Information 3 | - Machine is in excellent working condition. |
