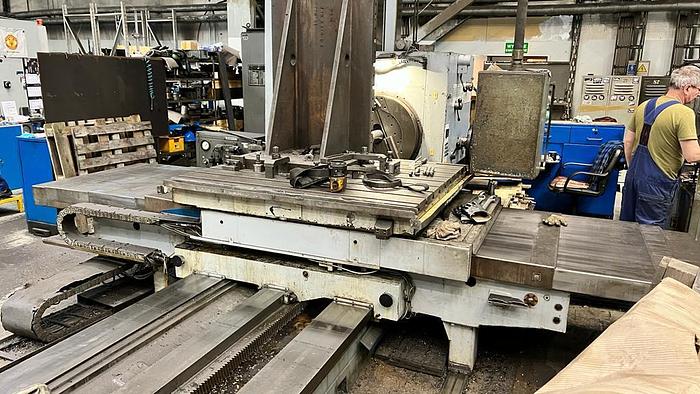

WMW-Union BFT 1106 Horizontal Boring Machine

WMW-Union (Germany) make Horizontal Boring Machine in excellent working condition. The model of the machine is BFT 110/6 and the Spindle Diameter is 110 mm. The Cross Travel of the machine is 1950 mm and the Weight Carrying Capacity of the Table is 6.3 Tons. The machine is equipped with a 3-Axis DRO and is with Ball-Screws. The technical details are as follows -

Make - WMW-Union (Germany)

Model - BFT 110/6

Spindle Diameter - 110 mm

Table Size - 1400 mm x 1600 mm

Spindle Taper - ISO 50

X Travel (Cross Travel) - 1950 mm

Y Travel (Vertical Travel) - 1600 mm

Z Travel (Longitudinal Travel) - 1950 mm

W Travel (Spindle Travel) - 800 mm

Table Weight Capacity - 6.30 tons

Spindle Speeds - 5.6 rpm to 1120 rpm

Facing Chuck Diameter - 700 mm

Weight of the Machine - 30 Tons

- Equipped with 3-Axis DRO.

- Equipped with Ball-Screws

- Machine is in excellent condition.
