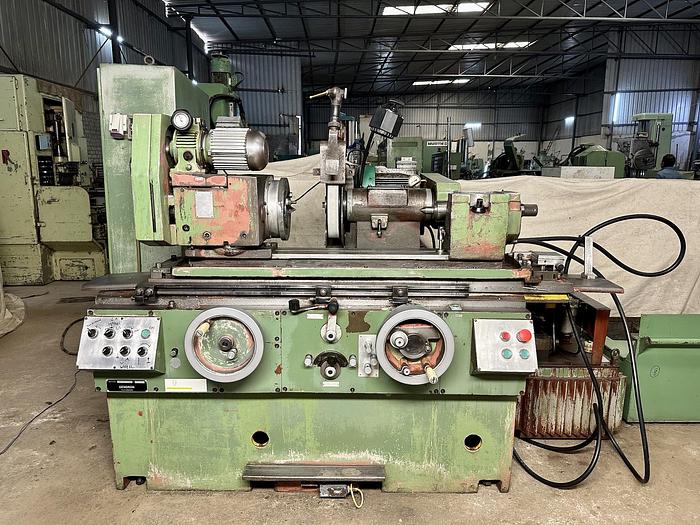

Gendron France 500 mm Precision Cylindrical Grinder
Gendron France 500 mm Precision Cylindrical Grinder
Contact us for price
Location:New Delhi, India
Description
Gendron (France) make External Cylindrical Grinder in excellent working condition. The Center Height of the machine is 150 mm and the Max. Length of Job is 500 mm. It is a High Precision Machine having a Least Count of 0.5 Micron (0.0005 mm). The technical details are as follows -
Make - Gendron (France)
Model - RUP 28_50
Center Height - 150 mm
Max. Job Diameter - 300 mm
Max. Length of Job - 500 mm
Grinding Wheel Diameter - 400 mm
Grinding Wheel Width - 50 mm
Work-Head Speeds - 35 rpm to 400 rpm
Least Count of the Machine - 0.5 Micron (0.0005 mm)
Table Rotation - 14 degree to -5 degree
- Features like Auto-Cut, Auto-Compensation, Delay, Plunge Grinding.
- Micro Feed Adjustments in the Wheel-Head Travels.
- Complete with Wheel Dresser, spare Wheels & Wheel Flange.
- Complete with Coolant Tank and Coolant Pump.
- Operating Manual and Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Gendron |
| Model | RUP 28_50 |
| Condition | Used |
| Make | Gendron (France) |
| Model | RUP 28_50 |
| Center Height | 150 mm |
| Max. Job Diameter | 300 mm |
| Max. Length of Job | 500 mm |
| Grinding Wheel Diameter | 400 mm |
| Grinding Wheel Width | 50 mm |
| Work-Head Speeds | 35 rpm to 400 rpm |
| Least Count of the Machine | 0.5 Micron (0.0005 mm) |
| Table Rotation | 14 degree to -5 degree |
| Other Information 1 | - Features like Auto-Cut, Auto-Compensation, Delay, Plunge Grinding. |
| Other Information 2 | - Micro Feed Adjustments in the Wheel-Head Travels. |
| Other Information 3 | - Complete with Wheel Dresser, spare Wheels & Wheel Flange. |
| Other Information 4 | - Complete with Coolant Tank and Coolant Pump. |
| Other Information 5 | - Operating Manual and Electrical Drawings are available. |
| Other Information 6 | - Machine is in excellent working condition. |
