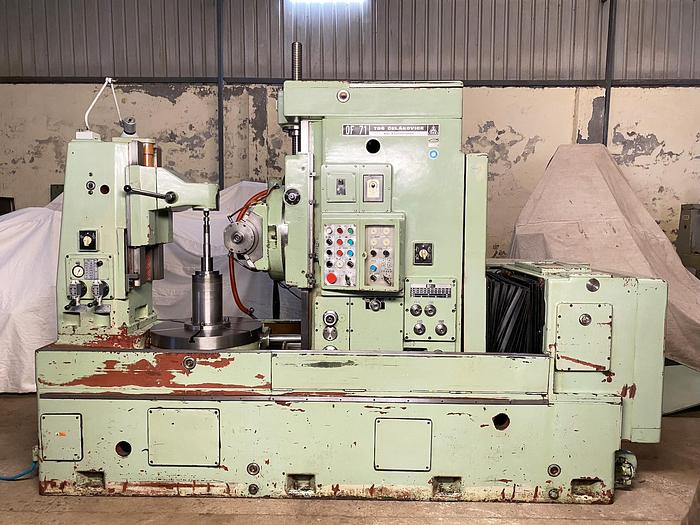

TOS OF 71 Gear Hobbing Machine
TOS OF 71 Gear Hobbing Machine
Contact us for price
Location:New Delhi, India
Description
Heavy Duty Gear Hobbing Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is OF 71 and the Max. Gear Diameter is 710 mm. The machine can work in Manual as well as in complete Auto Cycle Mode. The Max. Module capacity of the machine is 7 modules and it is equipped with a Hydraulic Tail-stock. The technical details are as follows -
Make - TOS (Czech Republic)
Model - OF 71
Module Capacity - 7 Modules
Max. Gear Diameter - 710 mm
Max. Width of Gear - 335 mm
Table Diameter - 630 mm
Number of Teeth - 8 to 300
Max. Dimensions of Hob Cutter - Diameter 195 mm x 220 mm Length
Max. Gear Diameter (with Support) - 500 mm
Hob Speeds - 40 rpm to 315 rpm
Weight of Machine - 7 Tons Approx.
- Features like Automatic Hob Shifting, Hydraulic Tail-Stock etc.
- Can work in Manual as well as in Auto-Cycle mode.
- Machine is complete with Change Gears etc.
- Operating Manual, Electrical Drawings etc. are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | OF 71 |
| Condition | Used |
| Make | TOS (Czech Republic) |
| Model | OF 71 |
| Module Capacity | 7 Modules |
| Max. Gear Diameter | 710 mm |
| Max. Width of Gear | 335 mm |
| Table Diameter | 630 mm |
| Number of Teeth | 8 to 300 |
| Max. Dimensions of Hob Cutter | Diameter 195 mm x 220 mm Length |
| Max. Gear Diameter (with Support) | 500 mm |
| Hob Speeds | 40 rpm to 315 rpm |
| Weight of Machine | 7 Tons Approx. |
| Other Information 1 | - Features like Automatic Hob Shifting, Hydraulic Tail-Stock etc. |
| Other Information 2 | - Can work in Manual as well as in Auto-Cycle mode. |
| Other Information 3 | - Machine is complete with Change Gears etc. |
| Other Information 4 | - Operating Manual, Electrical Drawings etc. are available. |
| Other Information 5 | - Machine is in excellent working condition. |
