Donini A29 Gear Hobbing Machine
Donini A29 Gear Hobbing Machine
Contact us for price
Location:New Delhi, India
Description

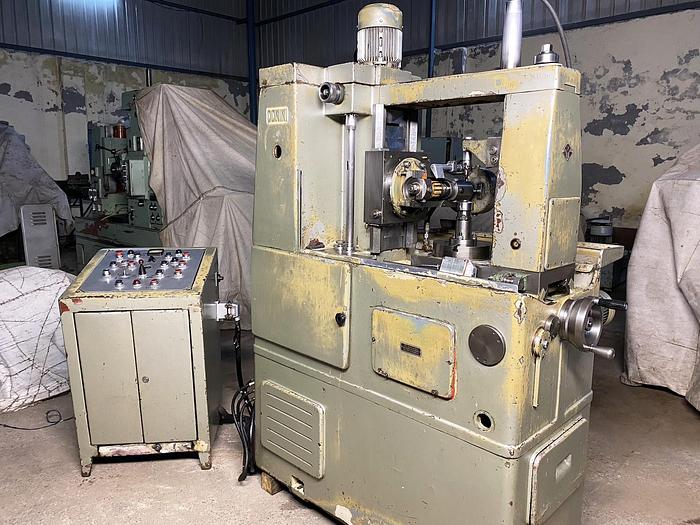

Donini (Italy) make Automatic Gear Hobbing Machine in excellent working condition. The model of the Machine is A29 and the Maximum Module Capacity is 3.5 Module. It is a Fully Automatic Machine which can work in complete Auto-Cycle Mode as well as in Manual Mode. The technical details are as follows -
Make - Donini (Italy)
Model - A29
Max. Module Capacity - 3.5 Module
Max. Gear Diameter - 290 mm
Vertical Travel of Hob-Slide - 200 mm
Table Diameter - 200 mm
Max. Hob Diameter - 80 mm
Max. Hob Length - 80 mm
Hob Speeds - 60 rpm to 270 rpm
Number of Teeth - 6 to 400
- Working in Complete Auto-Cycle Mode and in Manual Mode.
- Complete with Change Gears, Arbours, Mandrels, Hob Cutters etc.
- Operating Manual and Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Donini |
| Model | A29 |
| Condition | Used |
| Make | Donini (Italy) |
| Model | A29 |
| Max. Module Capacity | 3.5 Module |
| Max. Gear Diameter | 290 mm |
| Vertical Travel of Hob-Slide | 200 mm |
| Table Diameter | 200 mm |
| Max. Hob Diameter | 80 mm |
| Max. Hob Length | 80 mm |
| Hob Speeds | 60 rpm to 270 rpm |
| Number of Teeth | 6 to 400 |
| Other Information 1 | - Working in Complete Auto-Cycle Mode and in Manual Mode. |
| Other Information 2 | - Complete with Change Gears, Arbours, Mandrels, Hob Cutters etc. |
| Other Information 3 | - Operating Manual and Electrical Drawings are available. |
| Other Information 4 | - Machine is in excellent working condition. |
