Gleason No. 14 Straight Bevel Coniflex Generator
Gleason No. 14 Straight Bevel Coniflex Generator
Contact us for price
Location:New Delhi, India
Description
Gleason No. 14 Straight Bevel Coniflex Generator in excellent working condition. The machine is a Double Cam machine which can work in Generation Mode as well as in Format Mode. It is complete with its setting gauges, change gears, operating manual, electrical drawings and lot's of other accessories. The Max. Pitch Diameter of Gear is 24" and the Max. Cone Distance is 12". The complete technical details are as follows -
Make - Gleason (USA)
Model - No. 14
Max. Pitch Diameter of Gear - 24"
Max. Cone Distance - 12"
Max. Face Width - 3.5"
Stroke Length - 0.5" to 4.25"
Max. Pitch - 3 D.P.
Pitch Angle - 5 Degree 42' to 105 Degree
Extreme Ratio - 10:1
Stroke Rate - 64 strokes/min to 495 strokes/min
- Double Cam Machine suitable for Roughing as well as Finishing.

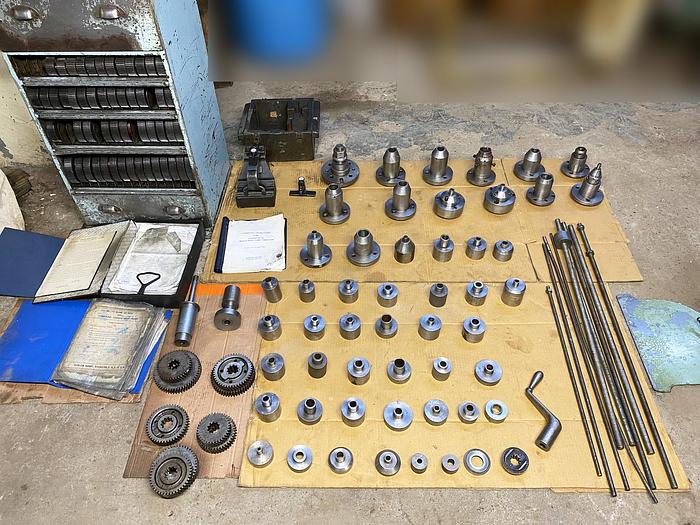

- Complete with Setting Gauges, Change Gears, and a lot of other accessories.
- Operating Manuals, Electrical Drawings, Nc/75 Table etc. are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Gleason |
| Model | No. 14 |
| Condition | Used |
| Make | Gleason (USA) |
| Model | No. 14 |
| Max. Pitch Diameter of Gear | 24" |
| Max. Cone Distance | 12" |
| Max. Face Width | 3.5" |
| Stroke Length | 0.5" to 4.25" |
| Max. Pitch | 3 D.P. |
| Pitch Angle | 5 Degree 42' to 105 Degree |
| Extreme Ratio | 10:1 |
| Stroke Rate | 64 strokes/min to 495 strokes/min |
| Other Information 1 | - Double Cam Machine suitable for Roughing as well as Finishing. |
| Other Information 2 | - Complete with Setting Gauges, Change Gears, and a lot of other accessories. |
| Other Information 3 | - Operating Manuals, Electrical Drawings, Nc/75 Table etc. are available. |
| Other Information 4 | - Machine is in excellent working condition. |
