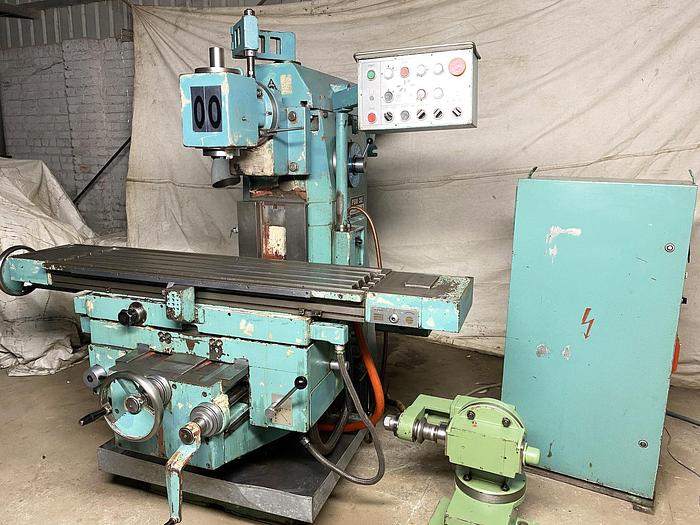

TOS FGU 32 Universal Milling Machine
TOS FGU 32 Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description
Universal Milling Machine in excellent working condition made by TOS (Czech Republic). The model of the machine is FGU 32 and it is one of the latest models of conventional milling machines made by TOS company. The Table Size of the machine is 1250 mm x 320 mm and the Spindle Taper is ISO 50. The technical details are as follows -
Make - TOS (Czech Republic)
Model - FGU 32
Table Size - 1250 mm x 320 mm
XYZ Travel - 850 mm x 300 mm x 420 mm
Spindle Taper - ISO 50
Spindle Speeds - 31.5 rpm to 1400 rpm
Table Feed Rates - 14 mm/min to 900 mm/min
Table Rotation Angle - 45 Degree to -45 Degree
- Automatic Up / Down by 0.5 mm
- With 2 x Brackets & Arbour Shaft for Horizontal Milling.
- 1 spare x Double Swivel type Vertical Milling Head.
- Latest model of conventional milling machines made by TOS.
- Electrical Drawings of the machine are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | FGU 32 |
| Condition | Used |
| Make | TOS (Czech Republic) |
| Model | FGU 32 |
| Table Size | 1250 mm x 320 mm |
| XYZ Travel | 850 mm x 300 mm x 420 mm |
| Spindle Taper | ISO 50 |
| Spindle Speeds | 31.5 rpm to 1400 rpm |
| Table Feed Rates | 14 mm/min to 900 mm/min |
| Table Rotation Angle | 45 Degree to -45 Degree |
| Other Information 1 | - Automatic Up / Down by 0.5 mm |
| Other Information 2 | - With 2 x Brackets & Arbour Shaft for Horizontal Milling. |
| Other Information 3 | - 1 spare x Double Swivel type Vertical Milling Head. |
| Other Information 4 | - Latest model of conventional milling machines made by TOS. |
| Other Information 5 | - Electrical Drawings of the machine are available. |
| Other Information 6 | - Machine is in excellent working condition. |
