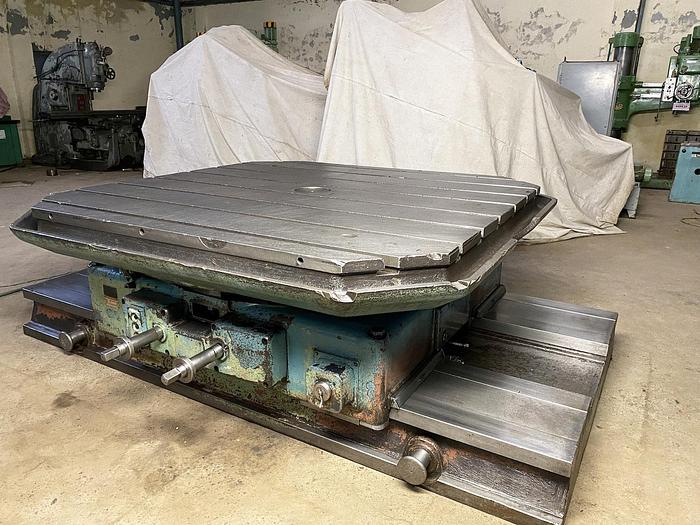

Skoda E20 Rotary Table

Skoda (Czech Republic) make Heavy Duty Rotary Table in excellent working condition. The model of the Table is E20 and the Clamping Area of Table is 2000 mm x 2000 mm. The technical details are as follows -

Make - Skoda (Czech Republic)

Model - E20

Table Size - 2000 mm x 2000 mm

Loading Capacity - 20 Tons

Table Travel - 1200 mm

Working Height - 900 mm

Width of Bedways - 1430 mm

Table Feed Travel Speeds - 2.8 mm/min -- 8 mm/min -- 22.4 mm/min

Table Feed Rotation Speeds - 3.8 mm/min -- 10.4 mm/min -- 30.5 mm/min

- Rapid & Feed Movements on Table Travel & Table Rotation.

- It is in excellent working condition.
