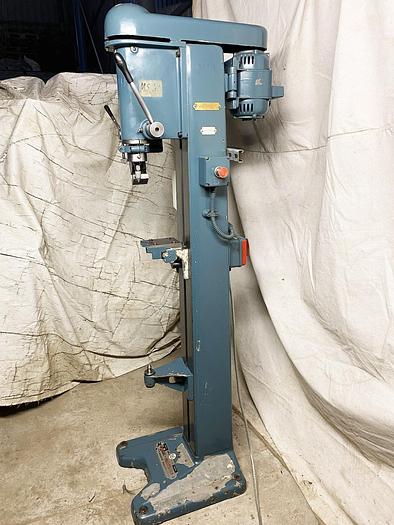

Jones & Shipman Centre Lapping Machine

Jones & Shipman (England) make Cone Centre Lapping Machine in excellent working condition. It is used for Lapping of 60 Degree Centres originally produced for turning operations in order to correct errors introduced by hardening or rough turning, thus ensuring accuracy of grinding operations when performed between centres. The technical details are as follows -

Make - Jones & Shipman (England)

Model - 1600

Cone Angle of Centre Holes - 60 Degree

Distance from Spindle Centre to Column - 165 mm

Maximum Length of Job - 1016 mm

Max. Diameter of Centre Holes - 24 mm

Max. Diameter of Abrasive Lap - 25 mm

Spindle Speeds - 745 rpm / 1420 rpm

Spindle Vertical Feed Travel - 51 mm

- Machine is in excellent working condition.
