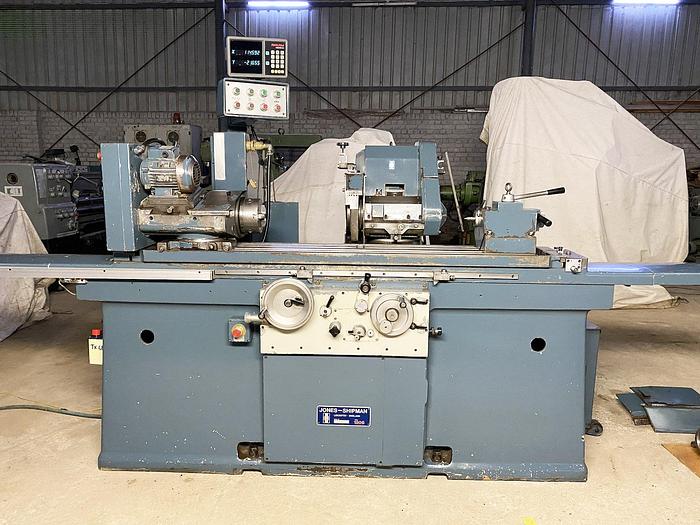

Jones & Shipman 1305 Universal Cylindrical Grinder
Jones & Shipman 1305 Universal Cylindrical Grinder
Contact us for price
Location:New Delhi, India
Description
Jones & Shipman (England) make Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is 1305 EIU and the Max. Job Diameter is 254 mm and Max. Job Length is 1016 mm. The technical details are as follows -
Make - Jones & Shipman (England)
Model - 1305 EIU
Center Height - 127 mm (5")
Max. Job Diameter - 254 mm (10")
Max. Job Length - 1016 mm (40")
Grinding Wheel Size - Diameter 350 mm x 40 mm Width
Work-Head Speeds - 40 rpm to 320 rpm
Table Rotation - 16 degree to -12 degree
Max. Internal Spindle Speed - 24,000 rpm
- Equipped with 2-Axis DRO (of least count of 1 Micron).
- Equipped with Internal Grinding Attachment.
- Features like Auto-Cut and Plunge Grinding.
- Complete with 3-point Steady, 2-point steady, Magnetic Chuck etc.
- Complete with Coolant Tank & Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jones & Shipman |
| Model | 1305 EIU |
| Condition | Used |
| Make | Jones & Shipman (England) |
| Model | 1305 EIU |
| Center Height | 127 mm (5") |
| Max. Job Diameter | 254 mm (10") |
| Max. Job Length | 1016 mm (40") |
| Grinding Wheel Size | Diameter 350 mm x 40 mm Width |
| Work-Head Speeds | 40 rpm to 320 rpm |
| Table Rotation | 16 degree to -12 degree |
| Max. Internal Spindle Speed | 24,000 rpm |
| Other Information 1 | Equipped with 2-Axis DRO (of least count of 1 Micron) |
| Other Information 2 | Equipped with Internal Grinding Attachment. |
| Other Information 3 | Features like Auto-Cut and Plunge Grinding. |
| Other Information 4 | Complete with 3-point Steady, 2-point steady, Magnetic Chuck etc. |
| Other Information 5 | Complete with Coolant Tank & Pump. |
| Other Information 6 | Machine is in excellent working condition. |
