TOS (same as Reishauer NZA) Gear Grinding Machine
TOS (same as Reishauer NZA) Gear Grinding Machine
Contact us for price
Location:New Delhi, India
Description

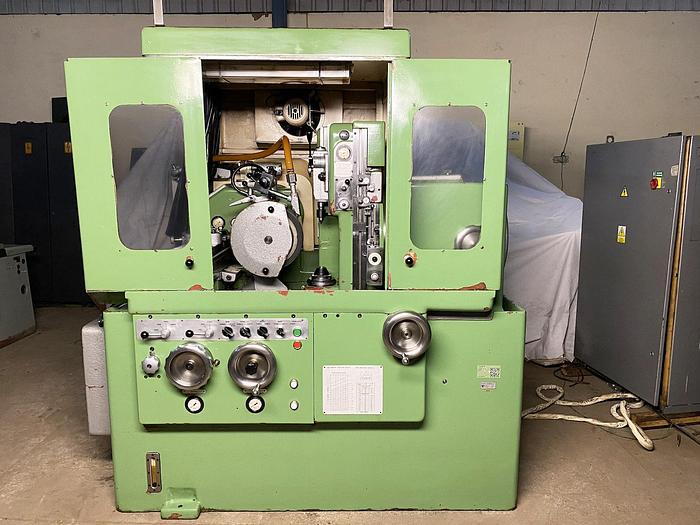

TOS (Czech Republic) make Gear Grinding Machine in excellent working condition. This machine has been made under license of Reishauer and is the exact same machine as Reishauer NZA Gear Grinder. The model of the machine is OBP 32 and it is complete with lots of accessories including spare flanges, madrels, change gears, etc.The technical details are as follows -
Make - TOS (Czech Republic)
Model - OBP 32 (same as Reishauer NZA)
Max. Gear Diameter - 300 mm
Max. Module - 5 module
Min. Module - 0.5 module
Max. Width of Job - 170 mm
Number of Teeth - 12 to 130
Max. Clamping Length - 420 mm
Max. Grinding Wheel Diameter - 350 mm
Width of the Grinding Wheel - 62 mm / 84 mm
- Equipped with Grinding Wheel Dressers.
- Complete with Change Gears, Coolant Tank, Pump etc.
- With Wheel Crusher unit, extra wheels, flanges, madrels, collets etc.
- Operating Manual & Electrical Drawings are available.
- Machine is in excellent (as good as new) working condition.
Specifications
| Manufacturer | TOS (Czech Republic) |
| Model | OBP 32 (same as Reishauer NZA) |
| Condition | Used |
| Max. Gear Diameter | 300 mm |
| Max. Module | 5 module |
| Min. Module | 0.5 module |
| Max. Width of Job | 170 mm |
| Number of Teeth | 12 to 130 |
| Max. Clamping Length | 420 mm |
| Max. Grinding Wheel Diameter | 350 mm |
| Width of the Grinding Wheel | 62 mm / 84 mm |
| Other Information 1 | Equipped with Grinding Wheel Dressers. |
| Other Information 2 | Complete with Change Gears, Coolant Tank, Pump etc. |
| Other Information 3 | With Wheel Crusher unit, extra wheels, flanges, madrels, collets etc. |
| Other Information 4 | Operating Manual & Electrical Drawings are available. |
| Other Information 5 | Machine is in excellent (as good as new) working condition. |
