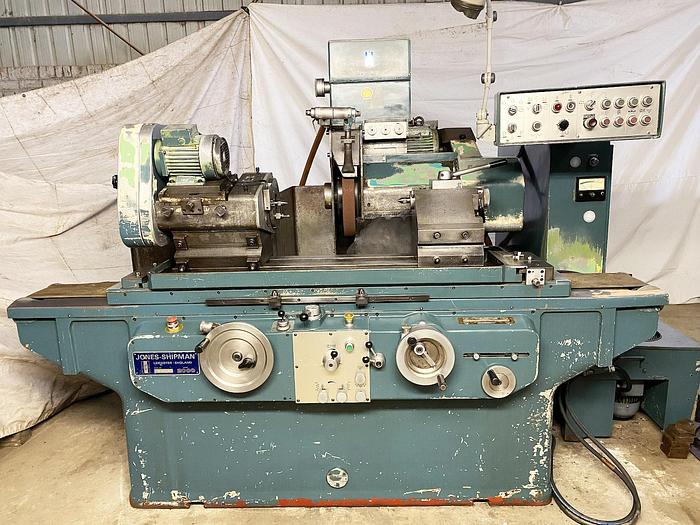

Jones & Shipman 2000 Production Cylindrical Grinder
Jones & Shipman 2000 Production Cylindrical Grinder
Contact us for price
Location:New Delhi, India
Description
Jones & Shipman (England) make High-Production Precision Cylindrical Grinding Machine in excellent working condition. The model of this machine is 2000 and it can work in a fully Auto-Cycle model. The machine is equipped with a Hydraulic Wheel Dresser. The technical details are as follows -
Make - Jones & Shipman (England)
Model - 2000
Center Height - 215 mm
Max. Swing Diameter - 425 mm
Max. Length of Job - 500 mm
Grinding Wheel Size - Diameter 500 mm x 50 mm Width
Work-Head Speeds - 40 rpm to 320 rpm
Table Rotation - 24 Degree to -16 Degree
Least Count of the Machine - 1 Micron (0.001 mm)
Grinding Wheel Speed - 33 m/s
- Equipped with a Hydraulic Wheel Dresser.
-Features like Auto-Cut, Plunge Grinding, Auto-Compensation.
- Auto-Cycle Operation possible.
- Machine is complete with Coolant Tank, Pump etc.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jones & Shipman (England) |
| Model | 2000 |
| Condition | Used |
| Center Height | 215 mm |
| Max. Swing Diameter | 425 mm |
| Max. Length of Job | 500 mm |
| Grinding Wheel Size | Diameter 500 mm x 50 mm Width |
| Work-Head Speeds | 40 rpm to 320 rpm |
| Table Rotation | 24 Degree to -16 Degree |
| Least Count of the Machine | 1 Micron (0.001 mm) |
| Grinding Wheel Speed | 33 m/s |
| Other Information 1 | Equipped with a Hydraulic Wheel Dresser. |
| Other Information 2 | Features like Auto-Cut, Plunge Grinding, Auto-Compensation. |
| Other Information 3 | Auto-Cycle Operation possible. |
| Other Information 3 | Machine is complete with Coolant Tank, Pump etc. |
| Other Information 4 | Machine is in excellent working condition. |
