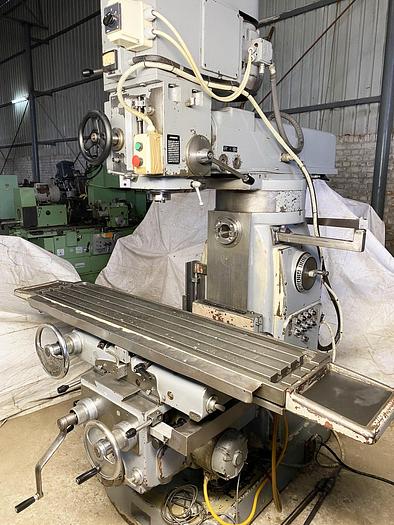

Rambaudi FCR Horizontal & Vertical Milling Machine

Rambaudi (Italy) make Horizontal & Vertical Turret Milling Machine in excellent working condition. The model of the machine is FCR and the Table Size is 1500 mm x 325 mm.The machine has separate Vertical and Horizontal Spindles and both can be used together.The technical details are as follows -

Make - Rambaudi (Italy)

Model - FCR

Table Size - 1500 mm x 325 mm

XYZ Travel - 1100 mm x 300 mm x 450 mm

Vertical Spindle Speeds - 40 rpm to 3500 rpm

Horizontal Spindle Speeds - 25 rpm to 1500 rpm

Horizontal Spindle Taper - ISO 50

Vertical Spindle Taper - ISO 40

Vertical Spindle Feed Travel - 150 mm

Vertical Spindle Feed Rate - 0.035 mm/rev to 0.15 mm/rev

Table Feed Travel Rate - 11 mm/min to 1000 mm/min

Over-Arm Travel - 550 mm

- Complete with Bracket for Horizontal Milling.

- Machine is in excellent working condition
