TOS BUA 16A Precision Cylindrical Grinding
TOS BUA 16A Precision Cylindrical Grinding
Contact us for price
Location:New Delhi, India
Description

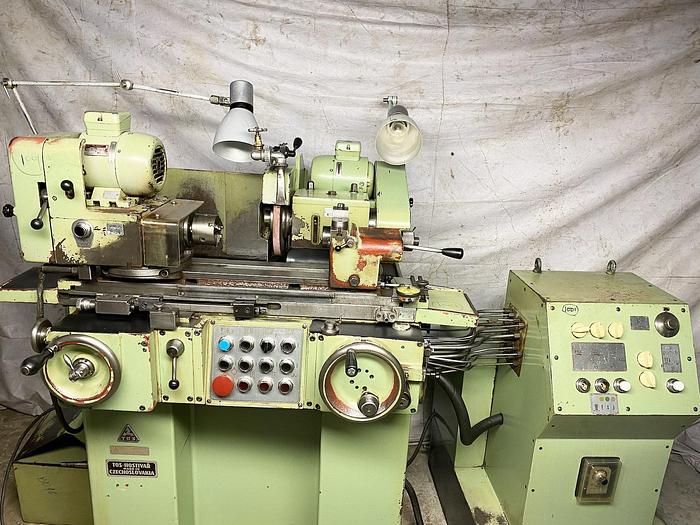

TOS (Czech Republic) make Precision Cylindrical Grinder in excellent working condition.The model of the machine is BUA 16A and Max. Grinding Diameter is 160 mm and Max. Length of Job is 300 mm. The technical details are as follows -
Make - TOS-Hostivar (Czech Republic)
Model - BUA 16A
Center Height - 85 mm
Max. Diameter of Job - 160 mm
Max. Length of Job - 300 mm
Grinding Wheel Size - Diameter 250 mm x 40 mm Width
Work-Head Speeds - 250 rpm to 710 rpm
Least Count of Wheel-Head Slide - 1 Micron
Table Rotation - 10 Degree to -10 Degree
- Micro-Feed Adjustments in both - Table Longitudinal Travel & in Wheel-Head Travel.
- Features like Auto-Cut, Auto-Compensation, Plunge, Auto-Slow etc.
- Complete with Coolant Tank & Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS-Hostivar |
| Model | BUA 16A |
| Condition | Used |
| Center Height | 85 mm |
| Max. Diameter of Job | 160 mm |
| Max. Length of Job | 300 mm |
| Grinding Wheel Size | Diameter 250 mm x 40 mm Width |
| Work-Head Speeds | 250 rpm to 710 rpm |
| Least Count of Wheel-Head Slide | 1 Micron |
| Table Rotation | 10 Degree to -10 Degree |
| Other Information 1 | Micro-Feed Adjustments in both - Table Longitudinal Travel & in Wheel-Head Travel. |
| Other Information 2 | Features like Auto-Cut, Auto-Compensation, Plunge, Auto-Slow etc. |
| Other Information 3 | Complete with Coolant Tank & Pump. |
| Other Information 4 | Machine is in excellent working condition. |
