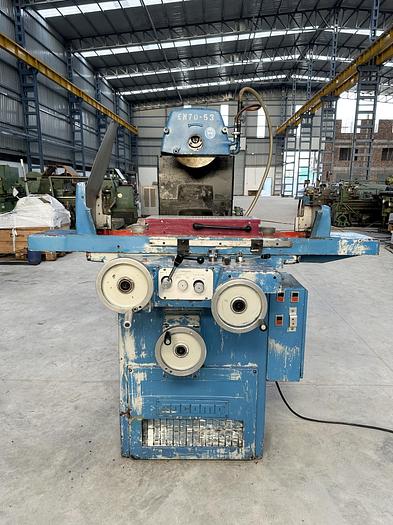

Socomo France 200 x 500 Surface Grinding Machine
Socomo France 200 x 500 Surface Grinding Machine
Contact us for price
New Delhi, India
orCall +91 98182 75782
Description
Socomo (France) make Hydraulic Surface Grinding Machine in excellent working condition. The Grinding Capacity of the machine is 200 mm x 500 mm. It's a High Precision Machine having a Least Count of 1 Micron (0.001 mm). The technical details are as follows -
Make - Socomo (France)
Model - Series 1774
Capacity - 200 mm x 500 mm
Longitudinal Travel of Table - 540 mm
Cross Travel of Table - 220 mm
Grinding Wheel Diameter - 250 mm
Grinding Wheel Width - 19 mm
Maximum Height from Magnet Top to Wheel Center - 430 mm
Least Count - 1 Micron (0.001 mm)
- Motorised Rapid Vertical Travel of the Wheel-Head.
- Automatic Feed & Continuous Cross Travels.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Socomo |
| Model | Series 1774 |
| Condition | Used |
| Make | Socomo (France) |
| Model | Series 1774 |
| Capacity | 200 mm x 500 mm |
| Longitudinal Travel of Table | 540 mm |
| Cross Travel of Table | 220 mm |
| Grinding Wheel Diameter | 250 mm |
| Grinding Wheel Width | 19 mm |
| Maximum Height from Magnet Top to Wheel Center | 430 mm |
| Least Count | 1 Micron (0.001 mm) |
| Other Information 1 | - Motorised Rapid Vertical Travel of the Wheel-Head. |
| Other Information 2 | - Automatic Feed & Continuous Cross Travels. |
| Other Information 3 | - Machine is in excellent working condition. |
