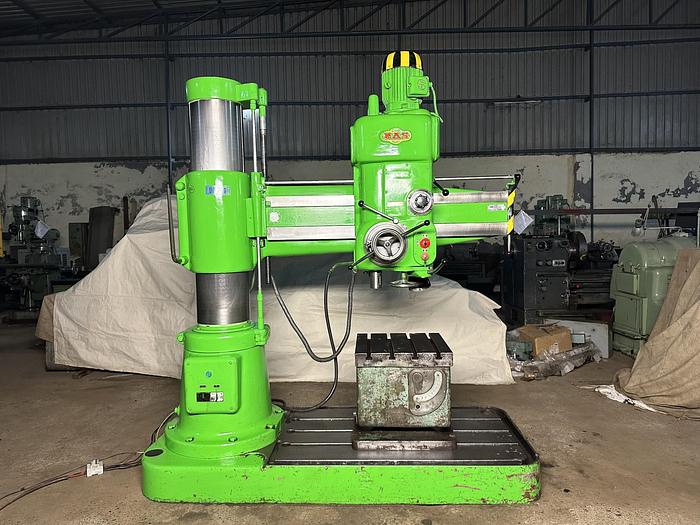

MAS VR4 Radial Drill Machine
MAS VR4 Radial Drill Machine
Contact us for price
New Delhi, India
Description
MAS (Czech Republic) make Radial Drilling Machine in excellent working condition. The model of the machine is VR 4 and the Drilling Capacity of the Machine is 50 mm. The machine is complete with a Tilting type Cube Table and Coolant Pump. The technical details are as follows -
Make - MAS (Czech Republic)
Model - VR 4
Drilling Capacity - 50 mm
Spindle Diameter - 75 mm
Arm Length - 1470 mm
Spindle Speeds - 45 rpm to 2000 rpm
Spindle Taper - MT 4
Spindle Feed Travel - 310 mm
Spindle Feed Rate of Travel - 0.025 mm/rev to 1.58 mm/rev
Vertical Travel of Arm - 680 mm
Tilting Cube Table Size - 550 mm x 550 mm
Tilting Angle of Cube Table - 0 to 90 Degree
Clamping Type - Manual
- Complete with Coolant Tank and Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | MAS |
| Model | VR 4 |
| Condition | Used |
| Make | MAS (Czech Republic) |
| Model | VR 4 |
| Drilling Capacity | 50 mm |
| Spindle Diameter | 75 mm |
| Arm Length | 1470 mm |
| Spindle Speeds | 45 rpm to 2000 rpm |
| Spindle Taper | MT 4 |
| Spindle Feed Travel | 310 mm |
| Spindle Feed Rate of Travel | 0.025 mm/rev to 1.58 mm/rev |
| Vertical Travel of Arm | 680 mm |
| Tilting Cube Table Size | 550 mm x 550 mm |
| Tilting Angle of Cube Table | 0 to 90 Degree |
| Clamping Type | Manual |
| Other Information 1 | - Complete with Coolant Tank and Pump. |
| Other Information 2 | - Machine is in excellent working condition. |
