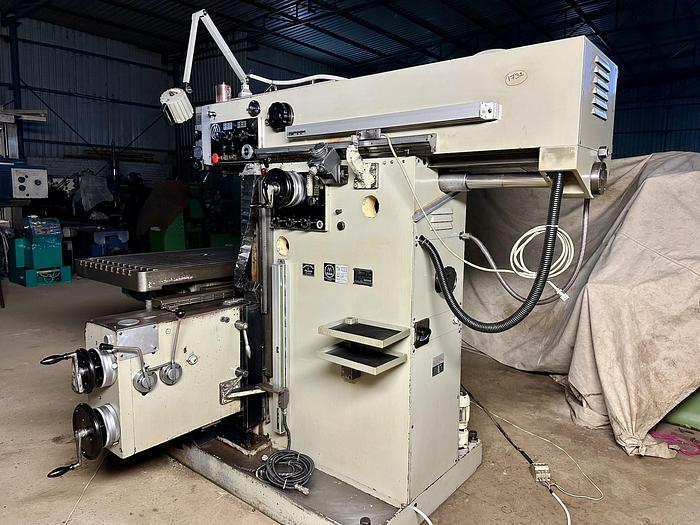

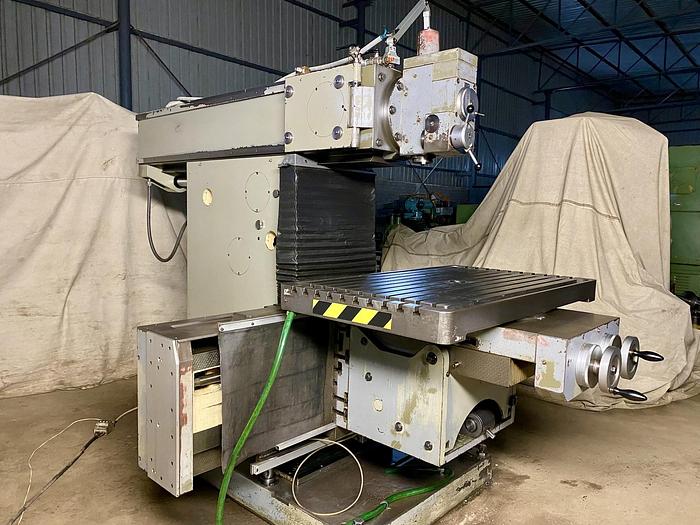

Maho MH-1000 Universal Milling Machine

Maho (Germany) make Heavy Duty Universal Tool and Diesinking Milling Machine in excellent working condition. The model of the machine is MH 1000 and the Table Size is 1250 mm x 740 mm.

It is a very versatile machine suitable for Horizontal Milling, Vertical Milling, Angular Milling, and Boring operations. The Table of the machine can be rotated through 360 degrees and can be swivelled & inclined to each side by 30 degrees. Therefore, it is very ideal for many types of jobs as machining of several component faces can be machined easily without intermediate resetting. The technical details are as follows -

Make - Maho (Germany)

Model - MH 1000

Table Size - 1250 mm x 740 mm

XYZ Travel - 1000 mm x 750 mm x 600 mm

Spindle Speeds - 32 rpm to 1600 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 8 mm/min to 400 mm/min

Vertical Spindle Travel - 100 mm

Cross Travel of Table - 275 mm (Manual)

Vertical Clamping Area - 600 mm x 580 mm

Table Rotating Range - 360 degrees

Table Swivel of Either Side - +30 degree to -30 degree

Table Incline to Front & Rear Side - +30 degree to -30 degree

- Versatile machine for many different types of milling & boring jobs.

- Table can be removed to clamp the job directly on the Vertical Surface.

- Machine is in excellent working condition.
