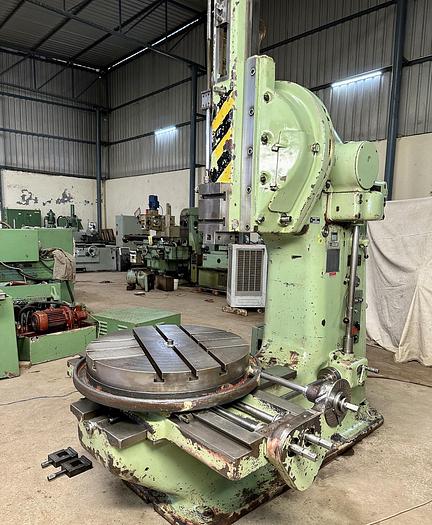

TOS ST-350 Vertical Slotting Machine
TOS ST-350 Vertical Slotting Machine
Contact us for price
New Delhi, India
orCall +91 98182 75782
Description
TOS (Czech Republic) make Vertical Slotting Machine in excellent working condition. The model of the machine is ST350 and the Max. Stroke Length is 350 mm and the Table Diameter is 800 mm. The technical details are as follows -
Make - TOS (Czech Republic)
Model - ST350
Max. Stroke Length - 350 mm
Table Diameter - 800 mm
Stroke Rate - 10 strokes/min to 56 strokes/min
Feed Rate of Travel - 0 mm/stroke to 2 mm/stroke
Cross Travel of Table - 700 mm
Longitudinal Travel of Table - 650 mm
Rotation of Head - +12 Degree to -12 Degree
Height between Table Top & Machine Body - 550 mm
Distance between Tool & Machine Body - 700 mm
- Automatic Feed Travel on Cross, Longitudinal & Rotation of Table.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | ST350 |
| Condition | Used |
| Make | TOS (Czech Republic) |
| Model | ST350 |
| Max. Stroke Length | 350 mm |
| Table Diameter | 800 mm |
| Stroke Rate | 10 strokes/min to 56 strokes/min |
| Feed Rate of Travel | 0 mm/stroke to 2 mm/stroke |
| Cross Travel of Table | 700 mm |
| Longitudinal Travel of Table | 650 mm |
| Rotation of Head | +12 Degree to -12 Degree |
| Height between Table Top & Machine Body | 550 mm |
| Distance between Tool & Machine Body | 700 mm |
| Other Information 1 | - Automatic Feed Travel on Cross, Longitudinal & Rotation of Table. |
| Other Information 2 | - Machine is in excellent working condition. |
