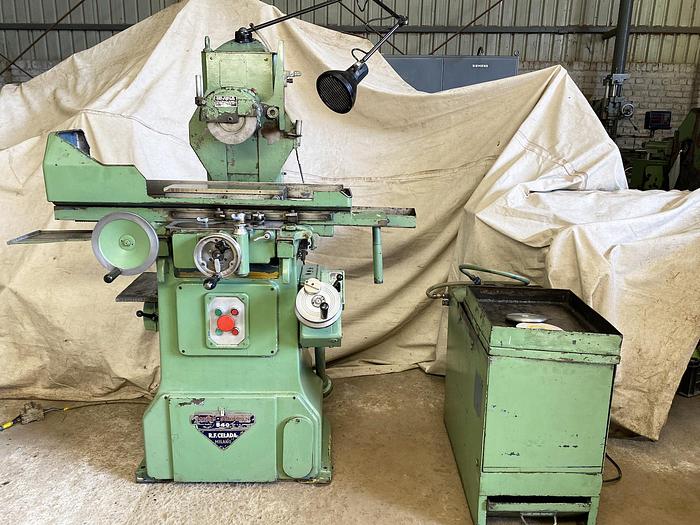

Jones & Shipman 540P Precision Surface Grinder
Jones & Shipman 540P Precision Surface Grinder
Contact us for price
New Delhi, India
Description
Jones & Shipman (England) make Precision Surface Grinding Machine in excellent working condition. The model of the machine is 540P and the Grinding Capacity is 150 mm x 450 mm. The technical details are as follows -
Make - Jones & Shipman (England)
Model - 540P
Job Grinding Size - 150 mm x 450 mm
Magnet Size - 150 mm x 420 mm
Longitudinal Travel - 480 mm
Cross Travel - 170 mm
Grinding Wheel Size - Diameter 180 mm x 25 mm Width
Distance b/w Magnet Top & Wheel Center - 260 mm
Least Count of Vertical Feed Travel - 1 Micron (0.001 mm)
Least Count of Cross Feed Travel - 2.5 Micron (0.025 mm)
Graduations - Metric (in mm)
- Micro Feed Adjustments in both Vertical Travel & in Cross Travel.
- Complete with Coolant Tank & Pump.
- Rapid Motorised Vertical Travel of Wheel-Head.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jones & Shipman |
| Model | 540P |
| Condition | Used |
| Make | Jones & Shipman (England) |
| Model | 540P |
| Job Grinding Size | 150 mm x 450 mm |
| Magnet Size | 150 mm x 420 mm |
| Longitudinal Travel | 480 mm |
| Cross Travel | 170 mm |
| Grinding Wheel Size | Diameter 180 mm x 25 mm Width |
| Distance b/w Magnet Top & Wheel Center | 260 mm |
| Least Count of Vertical Feed Travel | 1 Micron (0.001 mm) |
| Least Count of Cross Feed Travel | 2.5 Micron (0.025 mm) |
| Graduations | Metric (in mm) |
| Other Information 1 | - Micro Feed Adjustments in both Vertical Travel & in Cross Travel. |
| Other Information 2 | - Complete with Coolant Tank & Pump. |
| Other Information 3 | - Rapid Motorised Vertical Travel of Wheel-Head. |
| Other Information 4 | - Machine is in excellent working condition. |
