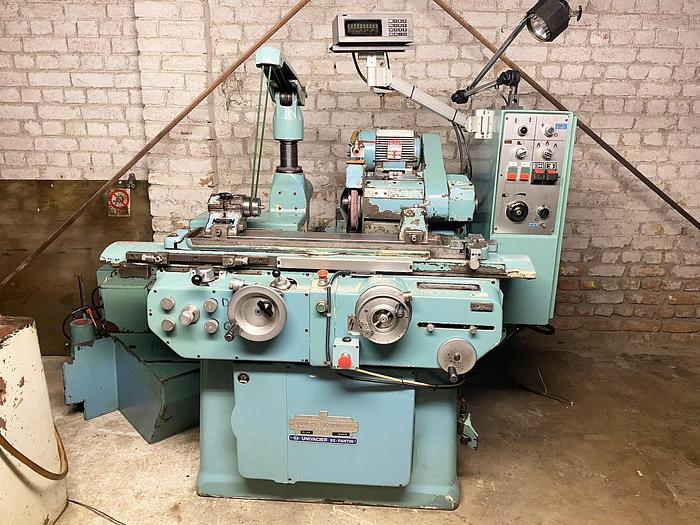

Jones & Shipman 1070 High Precision Cylindrical Grinder

Jones & Shipman (England) make High Precision Cylindrical Grinding Machine in excellent working condition. The model of the machine is 1070 and it is a high precision machine having a least count of 0.2 micron (0.0002 mm). It is very suitable for Tool Room Purposes and also for high Production Jobs as it is a complete Auto-Cycle machine. The technical details are as follows -

Make - Jones & Shipman (England)

Model - 1070

Center Height - 78 mm

Max. Diameter of Job - 153 mm (6")

Grinding Length of Job - 305 mm (12")

Distance b/w Centers - 430 mm (17")

Grinding Wheel Diameter - 254 mm (10")

Grinding Wheel Width - 25.4 mm (1")

Table Rotation - +20 Degree to -20 Degree

Least Count of the Machine - 0.2 Micron (0.0002 mm)

- Micro-feed Adjustments in both Table & Wheel-Head Travels.

- Machine is equipped with DRO.

- Machine can be used in complete Auto-Cycle mode.

- Machine is in excellent working condition.
