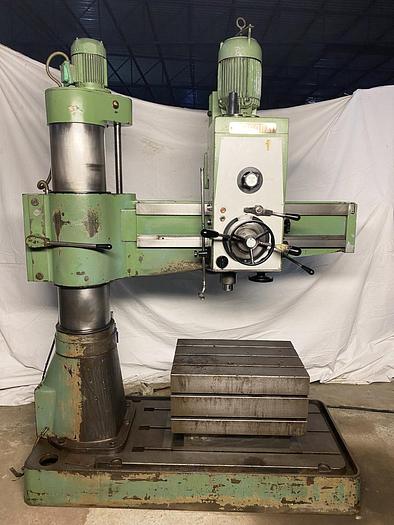

Bergonzi 50 mm Radial Drilling Machine
Bergonzi 50 mm Radial Drilling Machine
Contact us for price
New Delhi, India
orCall +91 98182 75782
Description
Bergonzi (Italy) make Radial Drilling Machine in excellent working condition.The model of the machine is TR 40 and the Max. Drilling Capacity is 50 mm. The technical details are as follows -
Make - Bergonzi (Italy)
Model - TR 40
Drilling Capacity - 50 mm
Spindle Diameter - 75 mm
Arm Length - 1100 mm
Spindle Taper - MT 4
Spindle Speeds - 40 rpm to 1400 rpm
Spindle Feed Travel - 230 mm
Spindle Feed Travel Rate - 0.08 mm/rev to 0.40 mm/rev
Vertical Travel of Arm - 480 mm
Clamping Type - Hydraulic
Table Size - 650 mm x 450 mm
- Machine is in excellent working condition.
Specifications
| Manufacturer | Bergonzi (Italy) |
| Model | TR 40 |
| Condition | Used |
| Drilling Capacity | 50 mm |
| Spindle Diameter | 75 mm |
| Arm Length | 1100 mm |
| Spindle Taper | MT 4 |
| Spindle Speeds | 40 rpm to 1400 rpm |
| Spindle Feed Travel | 230 mm |
| Spindle Feed Travel Rate | 0.08 mm/rev to 0.40 mm/rev |
| Vertical Travel of Arm | 480 mm |
| Clamping Type | Hydraulic |
| Table Size | 650 mm x 450 mm |
| Other Information 1 | Machine is in excellent working condition |
